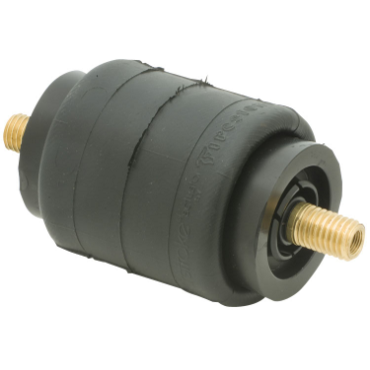

Firestone W023583004 Shaped Sleeve Airstroke Actuator

Product Description

The Firestone W023583004 is a Shaped Sleeve Airstroke Actuator. This actuator is designed to provide effective linear and angular motion. It is popular due to its low profile compared to traditional air cylinders. The actuator efficiently performs various tasks on machines that press, lift, convey, and package items. Additionally, it functions well as a vibration isolator, reducing the impact of harmful vibrations.

• Two-ply construction for durability
• Temperature range from -35°F to 135°F
• Maximum pressure of 100 psig

Product Highlights

The Firestone Airstroke Actuator is ideal for industrial applications such as presses, conveyors, lifts, and packaging machines.

Product Information

Standard Information

• Brand: Firestone
• MPN: W023583004

Technical Specifications

• Air Spring Description: 1/8 NPT Each End, Brass Studs
• Force at 3 in Stroke: 410 lbf
• Force at Maximum Stroke (80 psi): 360 lbf
• Stroke Length (Max): 3.400 in
• Compressed Height: 2.5 in
• Style No.: 2M1A
• Air Inlet: 1/8 in
• Pressure (Max): 60 psi
• Weight: 0.6 lb
• EAN or UPC: 767555011577
