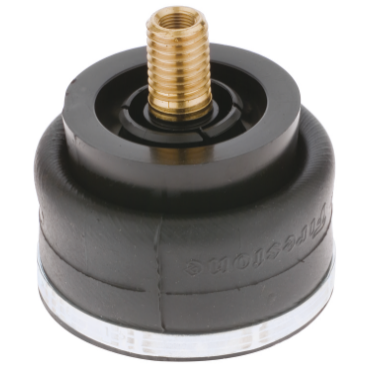

Firestone W023583002 Shaped Sleeve Airstroke Actuator

Product Description

The Firestone W023583002 is a shaped sleeve airstroke actuator designed for industrial applications. This actuator operates effectively in machinery that requires linear or angular movement. It utilizes a two-ply design that enhances durability and extends the lifespan of the component. Firestone air springs are known for their ability to isolate vibrations and provide smooth operation in various settings.

• Actuates linear or angular motion
• Temperature range from negative thirty-five degrees Fahrenheit to one hundred thirty-five degrees Fahrenheit
• Maximum operating pressure of one hundred psi

Product Highlights

Ideal for applications including press machines, conveyors, lifts, and packaging machines due to its robust design and operational flexibility.

Product Information

Standard Information

• Brand: Firestone
• MPN: W023583002

Technical Specifications

• Air Inlet Size: 1/8 in
• Compressed Height: 2.5 in
• Force @ 1 in Stroke: 470 lbf
• Force @ 3 in Stroke: 410 lbf
• Maximum Pressure: 60 psi
• Style Number: 2M1A
• Bellows Type: Shaped Sleeve
• Stroke Length (Max): 3.400 in
