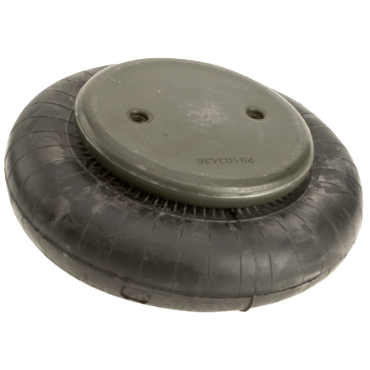

Firestone W013587751 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

The Firestone W013587751 is a single convolute airstroke actuator and airmount isolator. This device serves as a reliable industrial actuator and an effective vibration isolator.

• Single convolution air spring
• Flexible media for versatile motion
• Suitable for various applications

Product Highlights

The W013587751 is designed for industrial use, significantly reducing vibration effects while providing linear or angular motion. It's a great choice for installations where space is limited, making it ideal for pressing, lifting, and conveying tasks.

Product Information

Standard Information

• Brand: Firestone
• Part Number: W013587751

Technical Specifications

• Force @ Maximum Stroke (100 psi): 1425 lbf
• Stroke Length [Max]: 4.300 inches
• Compressed Height: 2.1 inches
• Bellows Type: Single Convolution
• Air Inlet Type: NPT
• Air Inlet: 1/4 inch
• Convolutions: Single
• Style No.: 160
• Pressure [Max]: 100 psi
• Temperature Range [Max]: 135 °F
• Temperature Range [Min]: -35 °F
• Weight: 2.92 LB
