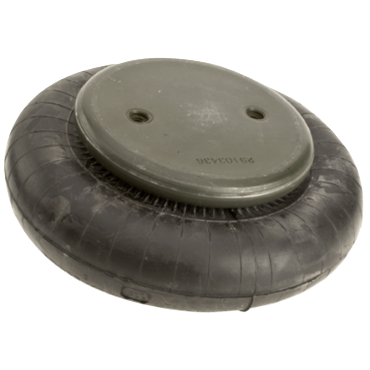

Firestone W013587460 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

Firestone W013587460 is a single convolute airstroke actuator and airmount isolator designed for industrial use. It provides linear and angular motion with a low profile, making it a versatile choice for various applications. This actuator excels in reducing vibration and serves effectively on press machines, conveyors, lifts, and packaging machines.

• Two-ply, fabric-reinforced rubber
• Flexible media for better performance
• Effective vibration reduction

Product Highlights

Firestone air springs are recognized for their durability and efficiency as industrial actuators and vibration isolators. They are ideal for tasks that involve motion and vibration management.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587460

Technical Specifications

• Pressure [Max]: 100 psi
• End Closure: Type 3 Bead Plate
• Convolutions: Single
• Air Inlet Type: NPT
• Stroke Length [Max]: 2.900 inches
• Compressed Height: 2.2 inches
• Temperature Range [Min]: -35 °F
• Temperature Range [Max]: 135 °F
• Force @ 1 in Stroke: 4388 lbf
• Weight: 5.5 lb
• EAN or UPC: 767555004920
