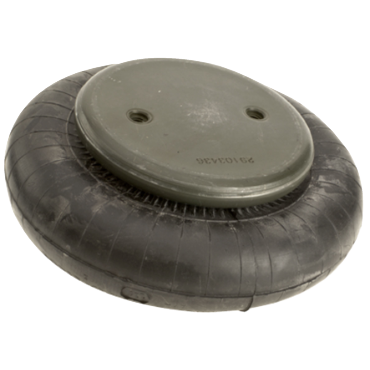

Firestone W013587110 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

Firestone W013587110 is a single convolute airstroke actuator and airmount isolator designed for industrial use. This product serves as both an actuator and a vibration isolator. It provides linear and angular motion efficiently while maintaining a low profile compared to standard air cylinders. Firestone air springs are effective in reducing vibrations in various industrial applications.

• Two-ply, fabric-reinforced rubber construction
• Flexible media adaptable to multiple applications
• Reduces harmful effects of vibration

Product Highlights

This air spring works in lifting, conveying, and packaging applications, proving beneficial in press and tension machines.

Product Information

Standard Information

• Brand: Firestone
• Part Number: 101482238

Technical Specifications

• Force @ Maximum Stroke (80 psi): 4650 lbf
• Convolutions: Single
• Stroke Length [Max]: 3.800 inches
• Style No.: 113
• Air Inlet Type: NPT
• Temperature Range [Min]: -35 °F
• Temperature Range [Max]: 135 °F
• Compressed Height: 2 inches
• No. of Bolts: 12
• Weight: 12.7 lb
• EAN or UPC: 767555003701
• End Closure: Type 4 Bead Ring
