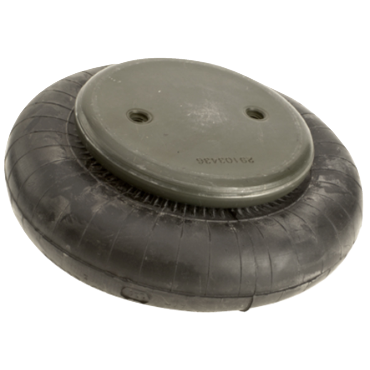

Firestone W013587101 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

Firestone W013587101 is a single convolute airstroke actuator and airmount isolator designed for industrial applications. It serves as an actuator, offering linear or angular motion in a low profile, surpassing traditional air cylinders in flexibility and efficiency. This product is valuable in various mechanical functions including pressing, tensioning, rolling, conveying, lifting, and packaging. As an isolator, it effectively reduces vibration impacts, contributing to improved machine performance.

• Provides linear and angular motion
• Effective vibration isolator
• Suitable for various industrial machines

Product Highlights

This actuator is made from two-ply, fabric-reinforced rubber, which enhances its durability and flexibility in operations.

Product Information

Standard Information

• Brand: Firestone
• Part #: 100849124

Technical Specifications

• Pressure [Max]: 100 psi
• Compressed Height: 2 inches
• End Closure: Type 2 Bead Plate
• Convolutions: Single
• Force @ 1 in Stroke: 12775 lbf
• Force @ 3 in Stroke: 8075 lbf
• Blind Tap Spacing: 6 1/4 inches
• Temperature Range [Max]: 135 °F
