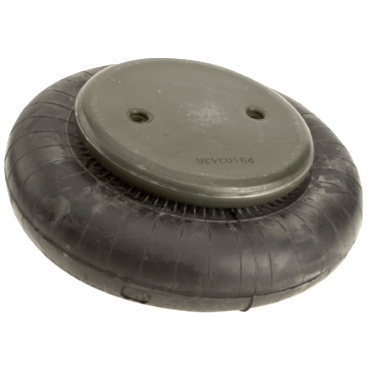

Firestone W013587092 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

Firestone W013587092 is a single convolute airstroke actuator and airmount isolator. This air spring serves as both an actuator and a vibration isolator. With its low profile design, it provides linear or angular motion, making it suitable for various machinery applications.

• Single convolution design
• Fabric-reinforced rubber construction
• Effective vibration reduction

Product Highlights

This air spring is ideal for industrial applications, offering flexibility and durability for machines.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587092

Technical Specifications

• Air Spring Description: Blind Nuts
• Bellows Type: Single Convolution
• Temperature Range (Min): -35 °F
• Temperature Range (Max): 135 °F
• Force @ 1 in Stroke: 13575 lbf
• Force @ 3 in Stroke: 11000 lbf
• Pressure (Max): 100 psi
• Stroke Length (Max): 4 1/2 in
• Compressed Height: 2.1 in
• Blind Tap Spacing: 6 1/4 in
• Air Inlet: 3/4 in NPT
• End Closure: Type 2 Bead Plate
• Weight: 15.1 LB
• EAN or UPC: 767555003596
