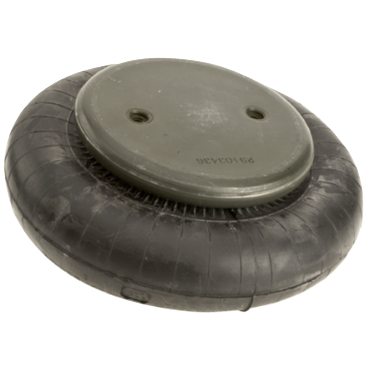

Firestone W013587009 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

Firestone W013587009 is a single convolute airstroke actuator and airmount isolator designed for industrial applications. This air spring actuator provides both linear and angular motion in a compact size, making it ideal for machinery that demands precision and flexibility. The airstroke actuator is effective in reducing vibrations and is commonly used in press machines, lifts, and conveyors.

• Single convolution design
• 2-ply bellows for enhanced durability
• 1/4 NPT air inlet for easy integration

Product Highlights

This air spring isolates vibrations while offering a range of motion, making it suitable for various applications.

Product Information

Standard Information

• Brand: Firestone
• Part #: 101499083

Technical Specifications

• Style No.: 19
• Air Inlet Type: NPT
• Stroke Length [Max]: 3.5 inches
• Blind Tap Spacing: 6.2 inches
• Convolutions: Single
• Temperature Range [Min]: -35 °F
• Temperature Range [Max]: 135 °F
• Compressed Height: 2.7 inches
