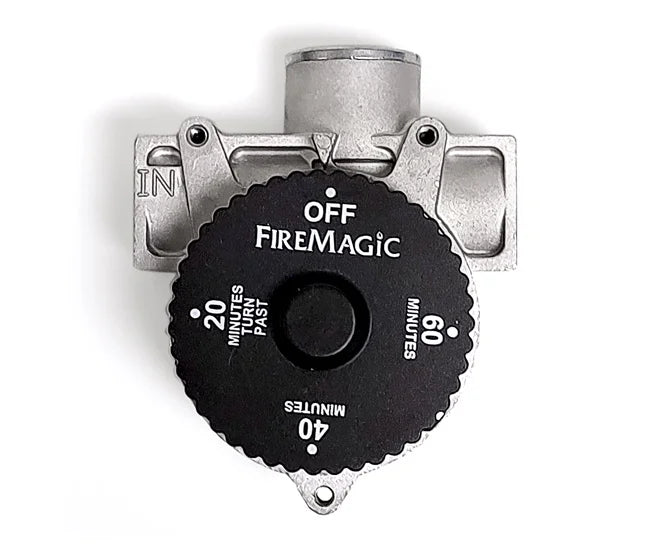

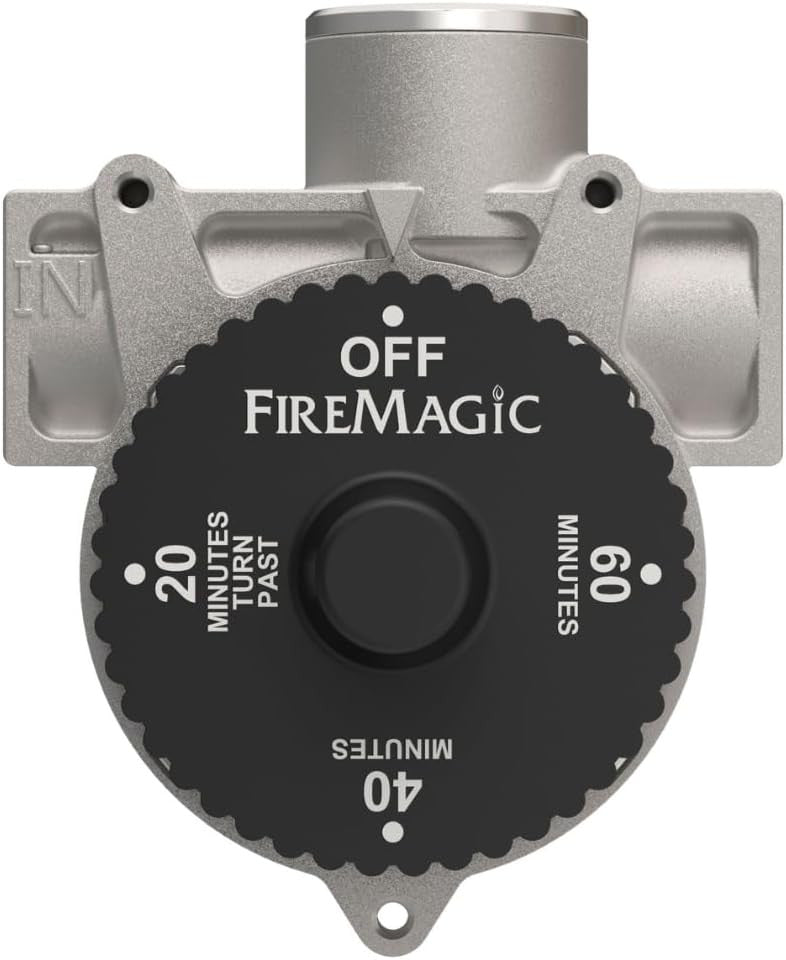

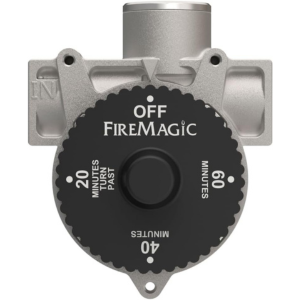

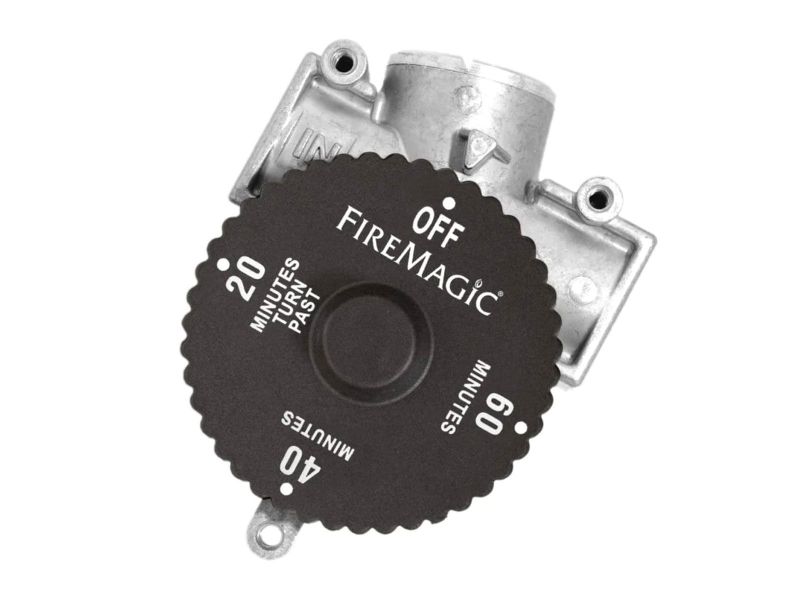

Firemagic 3092D 1 Hour Automatic Timer Gas Shut Off Valve With Logo

Product Description

The Fire Magic 3092D barbecue timer automatically shuts off gas flow at a maximum pre-set 1 hour time. It has a flow capacity of 100,000 BTU's and can be used for both propane or natural gas applications. This timer accommodates 1/2" NPT piping and is ideal for gas grills, firepits, fireplaces and outdoor cooking setups.

• Automatically shuts off gas flow at a maximum pre-set 1 hour time
• Flow capacity of 100,000 BTU's
• Can be used for both propane or natural gas applications

Product Highlights

The Fire Magic 3092D is a 1-hour automatic safety shut off valve with timer. It works with BBQs, fireplaces, firepits, gas logs and anywhere a gas timer is required.

Product Information

Standard Information

• Brand: FIREMAGIC
• Manufacturer Part Number: 3092D
• Country of Origin: USA

Technical Specifications

• Model: 3092D
• UPC: 619655083476
• Brand: Fire Magic
• Material: Stainless Steel
• Number of settings: 1
• OEM: RH Peterson / FireMagic
• Series: FireMagic
• Type: Non-electric gas timer
• Function: Shut off valve with timer
• Thread size: 1/2" NPT thread
• Timer: Yes
• Max pressure: 1/2 PSIG
• Usage: BBQ, firepits, fireplaces, gas logs and more
• Gas type: Propane or Natural Gas
• Width: 2"
• Height: 3.5"
• Depth: 4"
