Fire Protection 09-650 2-1/2 Open Snoot Assembly Nst

Product Description

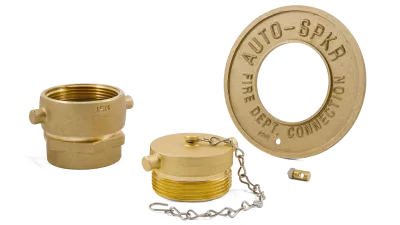

The FIRE PROTECTION 09-650 open snoot assembly kits feature a 2-1/2 IN, FNPT X FNST connection type. Each kit contains one open snoot, a 2-1/2 IN IPS brass wall plate (Autosprinkler), and a 2-1/2 IN plug with chain, boxed and labeled. Designed for fire protection systems, this assembly allows for fire department connection.

• Open Snoot Assembly
• Connection Type: FNPT X FNST
• Includes: Snoot, 2-1/2 IN Brass Plug With Chain And 2-1/2 IN FDC Brass Wall Plate

Product Highlights

The FIRE PROTECTION open snoot assembly kit includes all necessary components for a complete installation.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 09-650

Technical Specifications

• Nominal Size: 2-1/2 IN
• Connection Type: FNPT X FNST
• Material: Cast Brass
• Item Name: Open Snoot Assembly
• Manufacturer Part Number: 09-650-00
• Manufacturer: FPPI™
• Model: Fire Department Connection (FDC)
• Application: Fire Protection
• Orientation: Straight
• Thread Type: National Standard Thread
• Thread Type Abr.: NST
• Size: 2-1/2 in.
• Size Detail: 2-1/2 in. NPT x 2-1/2 in. NST
• Number of Connections: 2
• Outlet Size: 2-1/2 in.
• Inlet Size: 2-1/2 in.
• Finish: Brass
• Finish Detail: Cast Brass
• UL Listed: No
• FM Approved: No
• Length: 7 in. (177.8 mm)
• Width: 7 in. (177.8 mm)
• Height: 3.19 in. (81.03 mm)
