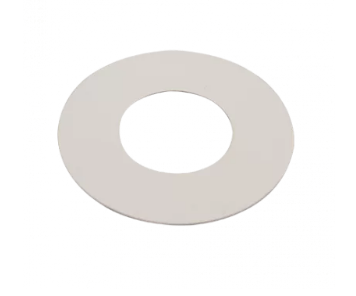

Fire Protection 01-100 Kydex Ring 4 in OD

Product Description

The FIRE PROTECTION 01-100 Kydex Ring is for use as a backing material behind sprinkler escutcheons. The 4 in diameter covers most oversize holes, including those cut in ceiling material during installation or replacement to meet seismic requirements. Kydex is a fire-resistant material and may be cut to install around an existing sprinkler drop.

• For use as a backing material behind sprinkler escutcheons
• 4 in diameter covers most oversize holes
• Fire-resistant material
• May be cut to install around an existing sprinkler drop

Product Highlights

The Kydex ring provides coverage of oversized holes and allows replacement of ceiling tiles without removing most sprinkler canopies.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 01-100
• Country of Origin: Global

Technical Specifications

• Thickness: 3/32 IN
• Outside Diameter: 4 IN
• Inside Diameter: 1-3/4 IN
• Material: 0.028 IN Kydex
• Finish/Color: White
• Industry Standards: UL 94 Listed
• Figure Number: 01-100
• Regulatory: Designed in Accordance with NFPA Requirements
• Product Type: Kydex Ring
• Size: 4
• Series: F01
• Dimensions: 4" Outer Diameter x 1 3/4" Inner Diameter
• Box Quantity: 100
• Brand: Fire Protection Products Inc.
