Fire-Lite MR-101/T Multi-Voltage Relay (Track Mounted)

Brand: FIRE-LITE
SKU: MR-101/T
Availability: In Stock

Ships same day if ordered by 12 pm
$118.46
$118.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

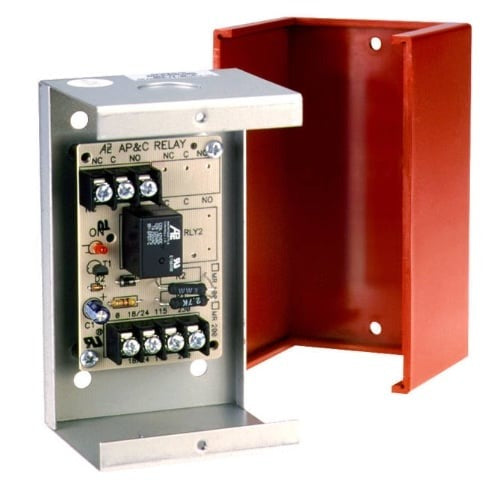

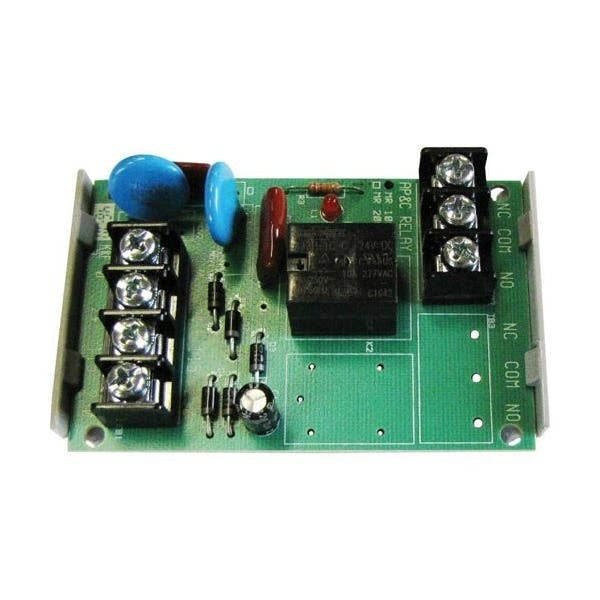

Fire-Lite MR-101/T is a multi-voltage SPDT relay module designed for track mounting in standard cabinets. The relay supports energizing from 18–35 VDC or VAC and from 120 VAC or 230 VAC, and provides an LED indicator for status. When used with an optional IP/POTS communicator card it can report alarms, troubles, and AC loss and permit remote programming or interrogation of the control panel. The unit is UL recognized and rated for 10,000,000 mechanical operations.

  • SPDT relay with multi-voltage operation: 18–35 VDC/VAC, 120 VAC, and 230 VAC
  • Track-mounted module with hardware for installation in standard cabinets; single, dual, or triple modules split from a 4-position master
  • UL recognized and UL listed as a control unit accessory; relays rated for 10,000,000 mechanical operations with a red LED per relay position

Product Highlights

Track-mounted SPDT relay, multi-voltage operation, LED indicator, optional IP/POTS communicator support, UL recognized

Product Information

Standard Information

  • Brand: FIRE-LITE
  • Manufacturer Part Number: MR-101/T
  • Country of Origin: United States
Technical Specifications
Brand
Fire-Lite
Manufacturer
Honeywell International, Inc
Manufacturer Part Number
MR-101/T
ADI Part Number
8K-MR101T
SES Number
FL MR-101/T
Product Series
MR
Product Type
SPDT relay, multi-voltage
Contact Type
SPDT (Single Pole Double Throw)
Input Voltage
18 to 35 VDC or VAC; 120 VAC; 230 VAC
Mounting Type
Track mounted
Module Configuration
Single, dual, or triple modules split from 4-position master
Indicator
Red LED per relay position
UL Listing
Listed as control unit accessory; relays are UL recognized
Mechanical Operations Rating
10,000,000 operations
Duty Rating
Continuous duty
Enclosure Options
Dust-proof metal enclosure versions available (MR-101/CR and MR-201/CR)
Dimensions
3.00 in (L) x 2.10 in (W) x 1.50 in (H)
Country of Origin
US
Sector
Fire
Compatibility
HVAC systems, temperature control systems, fire alarm systems, security systems, energy management systems, lighting control systems
