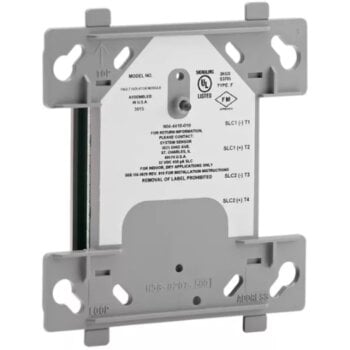

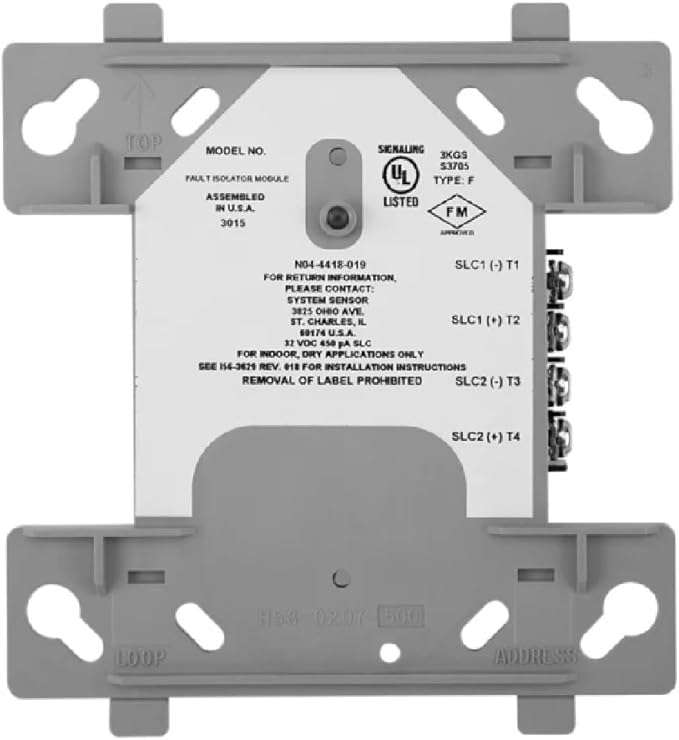

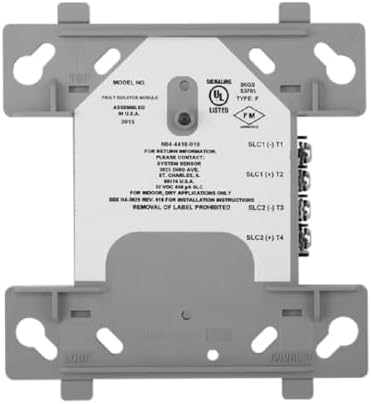

Fire-Lite I300 Fault Isolator Module

Product Description

The Fire-Lite I300 Fault Isolator Module is used with Fire-Lite's addressable fire alarm control panels (FACPs) to protect the system against wire-to-wire short circuits on the SLC loop. The I300 should be placed between each device on the SLC loop to isolate a short-circuit problem between the modules. It is required for true Style 7 operation.

• Powered by SLC loop directly, no external power required
• Integral LED blinks to indicate normal condition Illuminates steady when short circuit condition is detected
• Mounts in standard junction boxes

Product Highlights

The Fire-Lite I300 fault isolator module protects against wire-to-wire short circuits on the SLC loop and is required for Style 7 operation.

Product Information

Standard Information

• Brand: Fire-Lite
• Manufacturer Part Number: I300
• Country of Origin: US

Technical Specifications

• ADI Part Number: FL-I300
• Brand Name: Fire-Lite Alarms by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: I-300
• Product Model: I300
• Product Name: I300 Fault Isolator Module
• Product Series: I300
• Product Type: Isolator Module
• Device Supported: Control Panel
• Maximum Operating Temperature: 49°C
• Minimum Operating Temperature: 0°C
• Input Voltage: 28V DC
• Compatibility: ES-200X, MS-9600LS
• Brand: Fire-Lite
• Production Status: Active
• Listings & Approvals: CSFM, MEA, UL, ULC
