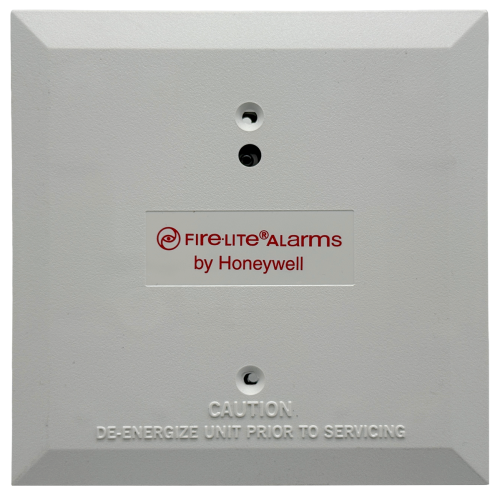

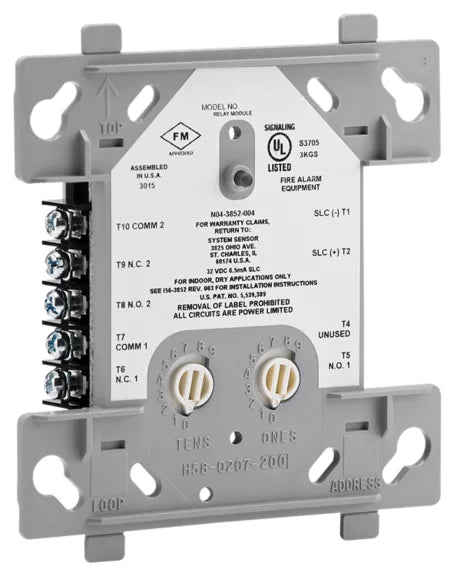

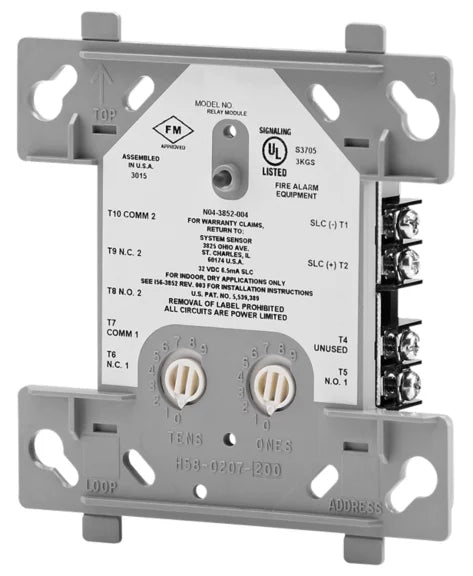

Fire-Lite CRF-300 addressable relay module

Product Description

The Fire-Lite CRF-300 addressable relay module provides a dry-contact output for activating auxiliary devices, such as fans, door holders, and control equipment. Address-ability allows the dry contact to be activated through panel programming. The relay module uses one of the addresses on a SLC loop and responds to regular polls from the control panel. The LED blinks with each poll received.

• Built-in type identification automatically identifies these devices to the control panel.
• Internal circuitry and relay powered directly by two-wire SLC loop.
• High noise immunity (EMF/RFI).

Product Highlights

Provides two Form-C dry contacts that switch together for auxiliary control. It supports LiteSpeed and CLIP addressing and mounts to a standard 4-inch box.

Product Information

Standard Information

• Brand: Fire-Lite
• Manufacturer Part Number: CRF-300
• Country of Origin: Mexico

Technical Specifications

• ADI Part Number: FL-CRF300
• Brand Name: Fire-Lite Alarms by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: CRF-300
• Product Model: CRF-300
• Product Name: CRF-300 Addressable Relay Module
• Product Series: CRF-300
• Product Type: Addressable Relay Control Module
• Device Supported: Control Panel
• Depth: 1.3"
• Height: 4.5"
• Width: 4"
• Connector Type: Through Hole
• Contact Material: Silver
• Contact Type: Normally Open
• Mounting Type: PCB Mount
• Brand: Fire-Lite
• Operation Mode: Automatic
• Coil Voltage: 32 Volts
• Product Dimensions: 1 x 4 x 5 inches
• Item model number: CRF-300
• Type: Intelligent addressable relay module
• Core Function(s): Two Form C dry contacts switch together for auxiliary control; programmable via panel
• Loop/Protocol: Fire-Lite SLC; supports LiteSpeed and CLIP addressing (panel-specific ranges)
• Power: 15 to 32 VDC from SLC; approximately 230–255 μA average (LED blink), up to 6.5 mA with LED on
• Indicators/UI: Bi-color LED blinks green on poll, steady red when activated
• Operating Range: 32 to 120 °F; 10 to 93% RH (non-condensing)
• Contact Ratings (select): up to 3.0 A at 30 VDC resistive; 0.9 A at 125 VAC resistive

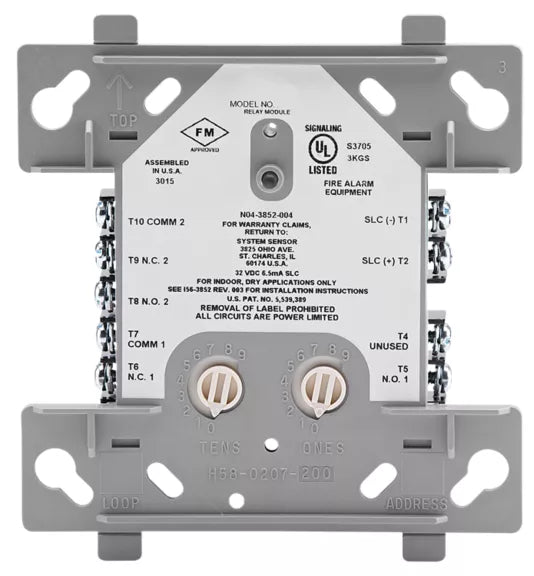

• Notes: One SLC address set via rotary switches; isolated Form C dry contacts (no power output)
• System Compatibility: Fire-Lite intelligent addressable FACPs supporting LiteSpeed and CLIP, including MS-9600 series, MS-9200UDLS, and MS-9050UD
• Unit of Measurement: EA (Each)
• Condition: New
• Compatibility: ES-200X, MS-9600LS
• Production Status: Active
• Listings & Approvals: CSFM, FM, MEA, UL, ULC
