Fire-Lite CRF-300-6 Relay Control Module

Product Description

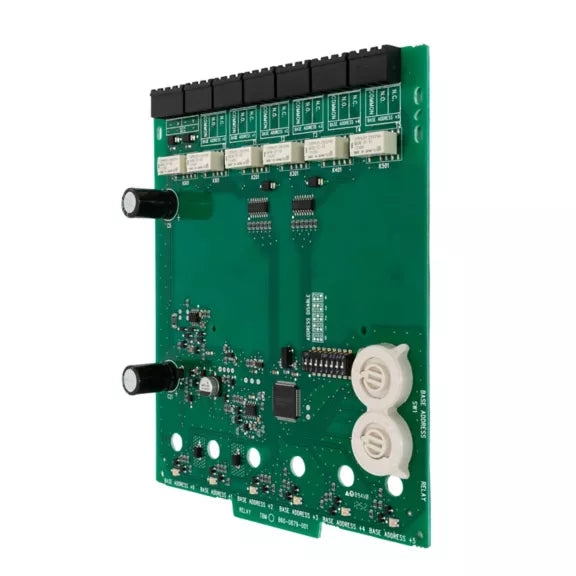

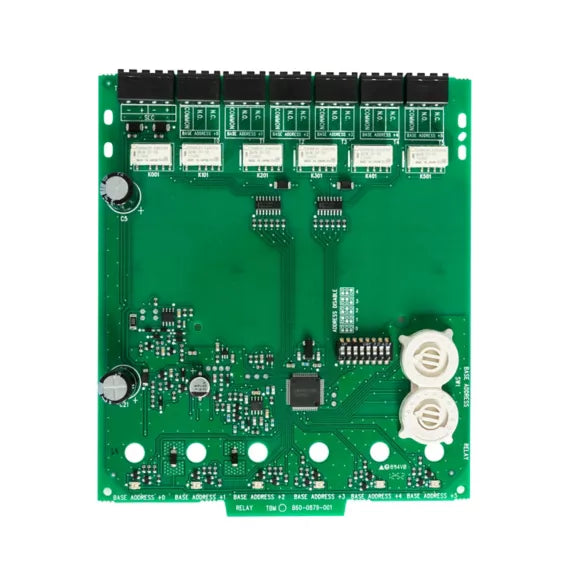

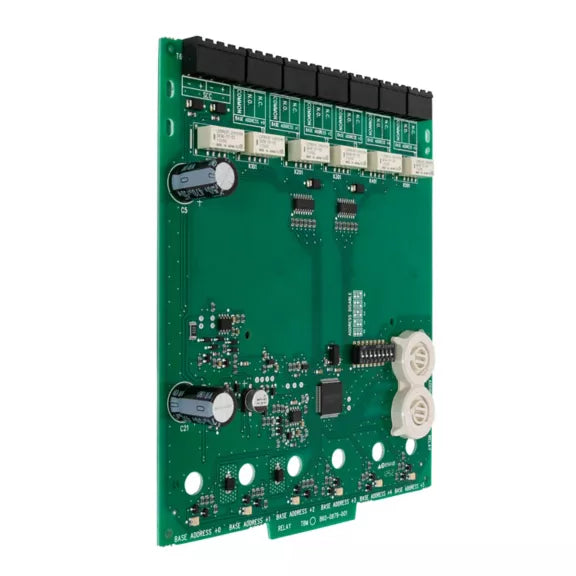

The Fire-Lite CRF-300-6 relay control module provides intelligent fire alarm systems with six Form C relays. The first module is addressed from 1 to 154 while the remaining modules are automatically assigned to the next five higher addresses. Provisions are included for disabling a maximum of three unused modules.

• Six addressable Form C relay contacts
• Removable 18 AWG (0.9 mm²) to 12 AWG (3.25 mm²) plug-in terminal blocks
• Status indicators for each point

Product Highlights

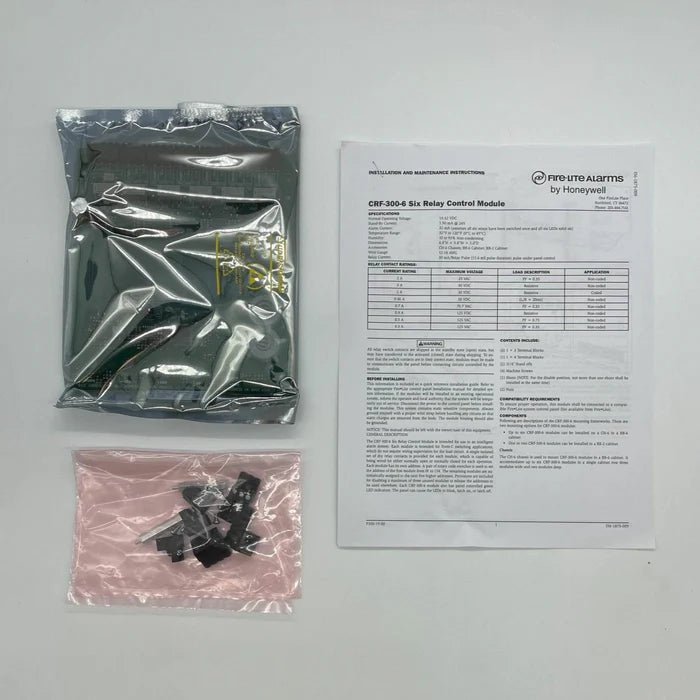

This module features panel-controlled green LED indicators, which can cause the LEDs to blink, latch on, or latch off. Mounting hardware is included.

Product Information

Standard Information

• Brand: Fire-Lite
• Manufacturer Part Number: CRF-300-6
• Country of Origin: MX

Technical Specifications

• Brand: Fire-Lite
• Product Type: Control Module
• ADI Part Number: FL-CRF3006
• Brand Name: Fire-Lite Alarms by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: CRF300-6
• Product Model: CRF-300-6
• Product Name: CRF-300-6 Relay Module
• Product Series: CRF-300
• Sector: Fire
• Connectivity Technology: Wired
• Depth: 1"
• Height: 6.8"
• Width: 5.8"
• Country of Origin: MX
