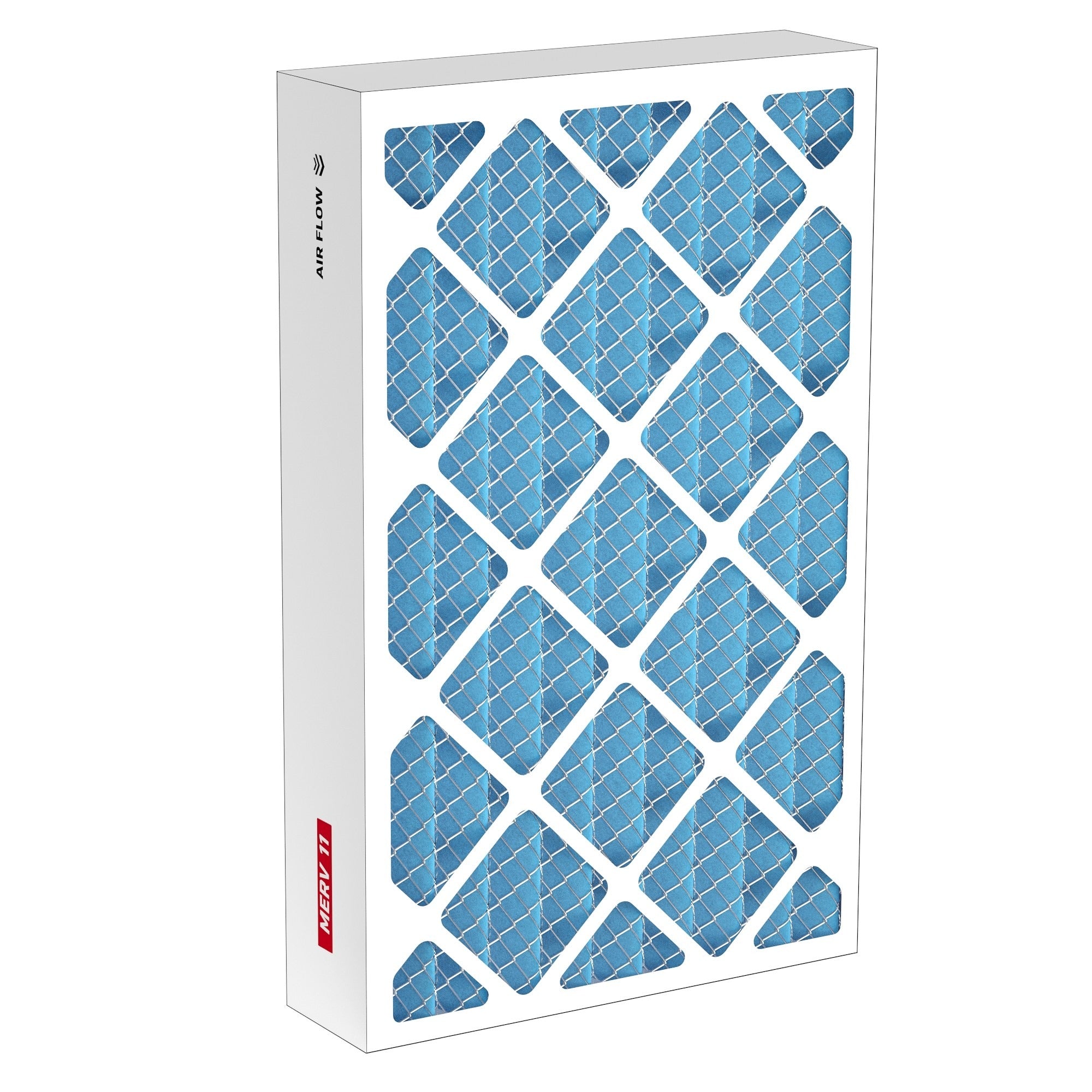

AF10x36x1-M11 Merv 11 Air Filter 10x36x1

Product Description

The AF10x36x1-M11 is a MERV 11 pleated air filter designed for residential and light commercial HVAC systems. With a nominal size of 10x36x1 inches and an actual size of 9.5 x 35.5 x 0.75 inches, this filter fits standard filter slots calling for a 1-inch thick filter in that nominal dimension. MERV 11 filtration captures a broad range of airborne particulates including dust, pollen, mold spores, pet dander, and fine dust particles, making it a solid choice for facilities with moderate air quality requirements or occupants with mild sensitivities. HVAC technicians and facility maintenance staff install this filter as part of routine preventive maintenance programs.

This filter is suited for forced-air heating and cooling systems in residential homes and light commercial applications where a 10x36x1 nominal filter slot is present. Typical installations include air handlers, furnaces, and fan coil units using return-air filter grilles or in-unit filter tracks. MERV 11 performance makes it appropriate for environments that require more filtration than a basic fiberglass or MERV 8 filter, without the added static pressure restrictions associated with MERV 13 or higher ratings. The filter is sold in a quantity of 10 per order.

Key Features

• MERV 11 rated pleated media captures dust, pollen, mold spores, and pet dander
• Nominal size 10x36x1 inches fits standard 1-inch filter slots of that dimension
• Actual size 9.5 x 35.5 x 0.75 inches for precise fit reference during installation
• 1-inch thick profile compatible with the most common residential and light commercial filter housings
• Pleated design increases surface area for improved particle capture and extended service life compared to flat media
• Sold in a case quantity of 10 filters

Compatibility

Designed as a replacement for HVAC systems requiring a nominal 10x36x1 inch, 1-inch thick air filter slot in residential forced-air furnaces, air handlers, and fan coil units.

Installation Notes

Air filters in this class are typically installed by HVAC technicians or qualified maintenance staff as part of scheduled filter change intervals. Power down or set the thermostat to the off position before opening the filter access panel or grille to prevent debris from entering the blower during service. Confirm the actual slot dimensions match the actual filter size of 9.5 x 35.5 x 0.75 inches before installation, as nominal sizing conventions can vary by manufacturer. Inspect the filter housing gasket or frame seal and replace if damaged to prevent air bypass around the filter media.
