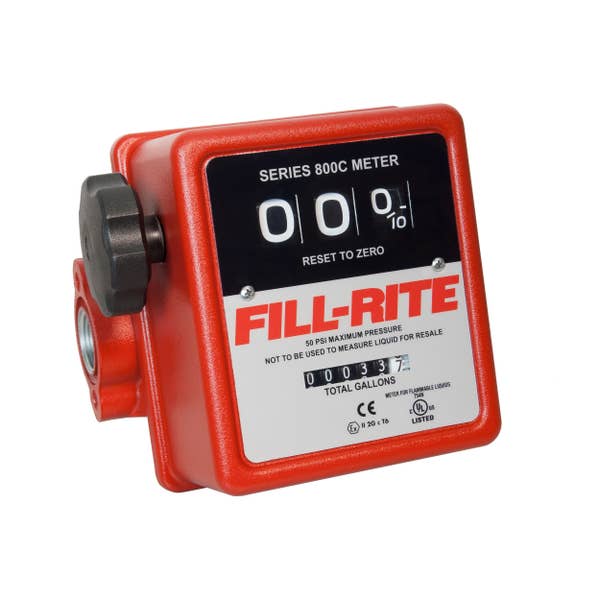

Fillrite 807c Mechanical Fuel Transfer Meter 5-20 Gpm

Product Description

The FILLRITE 807c is a 3-digit mechanical fuel transfer meter designed to measure fuel flow during transfer operations. It registers flow rates between 5 and 20 gallons per minute with plus or minus 1 percent accuracy, making it suitable for field fueling, fleet servicing, and bulk fuel dispensing applications. The meter uses NPT threaded connections for straightforward inline installation. It does not include additional installation components such as fittings or mounting hardware. Licensed fuel transfer technicians and fleet maintenance professionals are the primary installers of this meter.

The FILLRITE 807c is suited for above-ground fuel transfer setups where a reliable, non-electronic flow measurement is needed. Its mechanical register eliminates dependency on power sources, making it practical for remote locations, generator fueling, and off-road equipment servicing. This meter is intended for use in non-resale fuel dispensing applications only and is not approved for retail or commercial fuel resale metering under weights and measures regulations.

Key Features

• Measures flow rates from 5 to 20 gallons per minute
• Plus or minus 1 percent accuracy for reliable transfer tracking
• NPT threaded inlet and outlet connections for standard inline installation
• 3-digit mechanical register requires no external power source
• Not intended for fluid resale applications

Compatibility

Designed as an inline mechanical flow meter for use with fuel transfer pumps and dispensing systems operating within the 5 to 20 GPM flow range using NPT-threaded plumbing.

Installation Notes

Installation is typically performed by a qualified fuel system or fleet maintenance technician. Shut down the fuel transfer pump and depressurize the line before installing or removing the meter. Ensure NPT threads are properly sealed with compatible thread sealant rated for petroleum products. Verify that the application does not involve resale metering, as this meter is not certified for weights and measures compliance in commercial fuel sales.

Technical Specifications

• Flow Rate: 5-20 gallons per minute
• Accuracy: plus or minus 1 percent
• Connection Type: NPT threaded
• Register Type: 3-digit mechanical

Standard Information

• Brand: FILLRITE
• Manufacturer Part Number: 807c
