Product Description

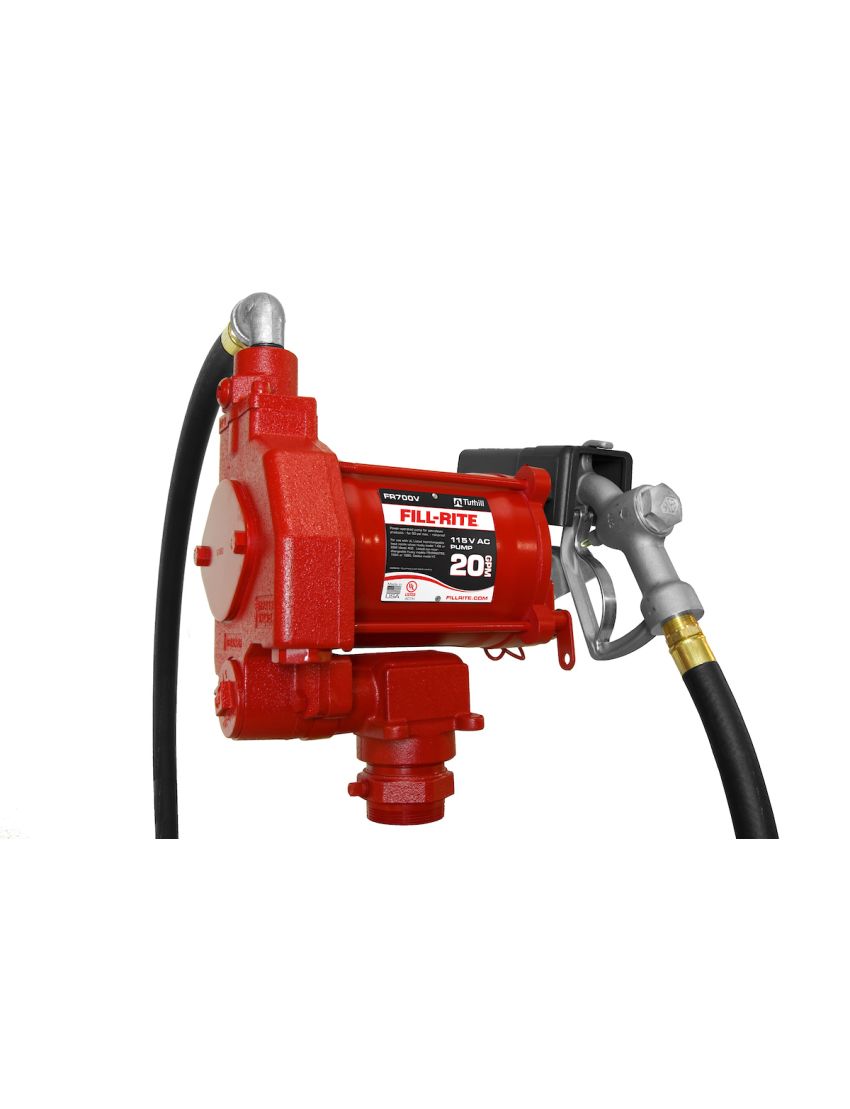

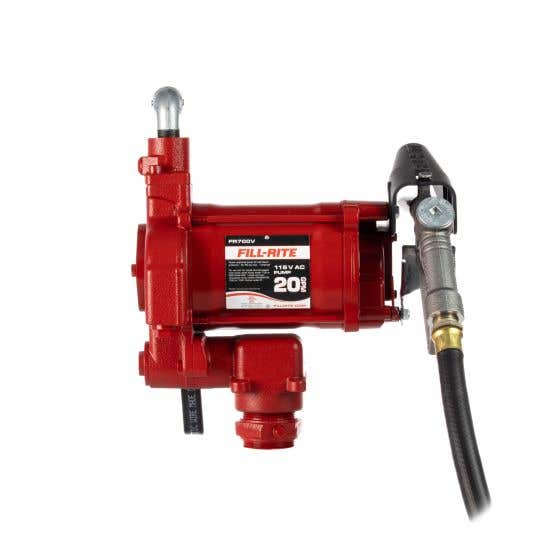

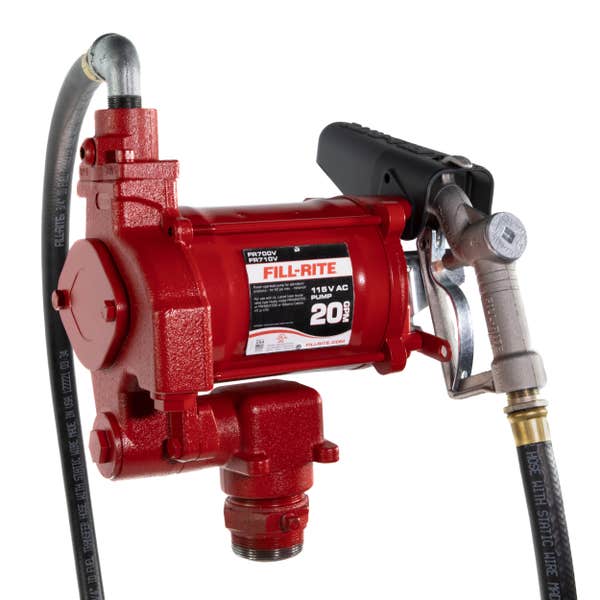

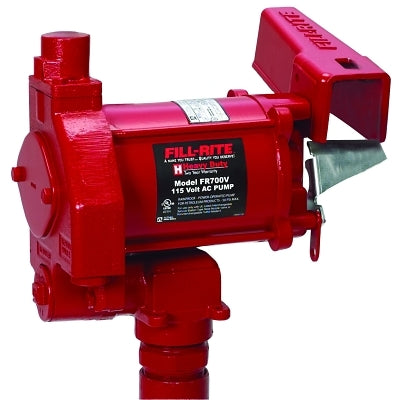

The FILL-RITE FR700V is a 115V AC heavy-duty transfer pump designed for use in agriculture, construction, and farming. It is compatible with gasoline, diesel, biodiesel up to B20, kerosene and E15. The pump features a cast iron housing and a motor with thermal overload protection.
- Compatible with gasoline, diesel, biodiesel up to B20, kerosene and E15
- Features a 2 in threaded base for tank mounting
- Self-priming design
Product Highlights
This heavy-duty transfer pump is ideal for transferring various fuels in demanding environments. Its robust construction and safety features ensure reliable performance.
Product Information
Standard Information
-
Brand: FILL-RITE
-
Manufacturer Part Number: FR700V
-
Country of Origin: US
Technical Specifications
-
MPN: FR700V
-
Brand: FILL-RITE
-
Amperage Rating: 5.5 A
-
Bearing Type: Permanently Lubricated Ball
-
Flow Rate: 20 gpm
-
Horsepower: 1/3 hp
-
Hose Diameter: 3/4 in
-
Hose Length: 12 ft
-
Housing Material: Cast Iron
-
Inlet Size: 1-1/4 in MNPT
-
Material: Aluminum, Cast Iron
-
Motor Speed: 1725 rpm
-
Mounting Type: Bung Adapter
-
Nozzle Type: Manual
-
Outlet Size: 3/4 in NPT
-
Seal Material: Carbon
-
Seal Type: Mechanical
-
Type: Heavy Duty
-
Applicable Materials: Fuels; Oils
-
Gear Material: Iron Rotor; Carbon Rtary Vanes
-
Gear Type: Rotary Vane
-
Includes: 3/4 in x 12 ft hose;3/4 in Manual Nozzle
-
Port Size: 1 1/4 in NPT Inlet; 3/4 in NPT Outlet
-
Voltage: 115 VAC
-
RPM: 1725
-
Amps AC: 5.5
-
Metered: No
-
Features: Explosion Proof Motor, Thermal Overload Protection
-
Hose Dia.: 3/4 in
-
Standards: UL/cUL
-
Duty Cycle: 30 min
-
Application: Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
-
Pump Design: Rotary Vane
-
Bypass Valve: Internal
-
Self-Priming: Yes
-
Max. Viscosity: 50 SUS
-
Pressure Range: 0 psi to 23 psi
-
Nozzle Material: Aluminum
-
Compatible Fluids: Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
-
Transfer Pump Application: Agriculture, Construction, Farming
-
Manufacturers Warranty Length: 2 yr
-
Country of Origin (subject to change): United States
-
Max Flowrate: 20 GPM / 75 LPM
-
Power Type: 115V AC
-
Inlet Size / Connection / Thread: 1.25 " / Female / NPT
-
Outlet Size / Connection / Thread: 0.75 " / Female / NPT
-
Mounting Size / Thread / Type: 2" / NPT / Bung Mount
-
Duty Cycle (min): 30 min on / 30 min off
-
Motor Power (HP): 0.33
-
Max Current (A): 5.5 A
-
Suction Lift (ft.): 15 '
-
Dry Vacuum (in. Hg): 12
-
Discharge Head (ft): 53 '
-
Strainer Mesh Size (Micron): 40 x 40 x .010"
-
Max Discharge Pressure (PSI): 23 PSI
-
Viscosity Range (cSt): 0.38 - 2.4
-
Included Accessories: Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Locking Nut, Fastener
-
Cable Connection: Hard-Wire
-
Discharge Hose: ¾” X 12’ UL Listed Hose with Static Ground Wire
-
Nozzle: ¾” Cast Aluminum Nozzle Spout
-
Model: FR700V
-
Power Supply: 115V/60Hz
-
Fluids: Diesel & Gasoline
-
Inlet: 1-1/4 Inch
-
Outlet: 3/4 Inch
-
Fit Type: Universal Fit
-
Style: Standard Accessories
-
Specification Met: cUL
