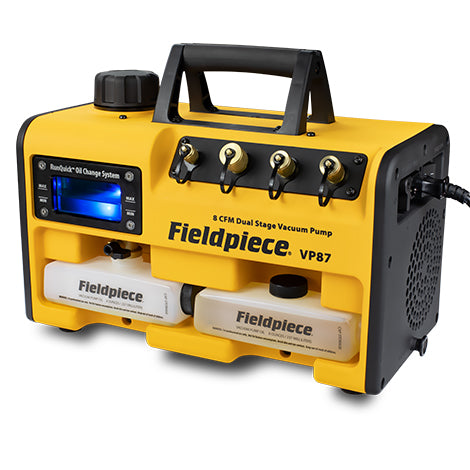

Fieldpiece VP87 8 CFM Vacuum Pump

Product Description

The Fieldpiece VP87 Vacuum Pump shortens evacuation times. This lightweight, portable, but powerful 8 CFM pump lets you quickly perform system evacuations. Its large oil reservoir window gives a clear view to assess the oil's condition. The pump has a 3/4 HP DC motor and an extra-wide base for stability. It also features four in-line ports for three different size hoses.

• 8 CFM flow rate with 15 microns ultimate vacuum
• 3/4 HP DC motor for power-to-weight and low voltage operation
• RunQuick® Oil Change System offers on-the-fly oil changes in seconds

Product Highlights

The Fieldpiece VP87 is a portable and powerful vacuum pump with a large oil reservoir, a robust motor, and a convenient oil change system.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: VP87-8 CFM

Technical Specifications

• Flow Rate: 8CFM
• Oil Capacity: 8oz (237mL)
• Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
• Fieldpiece part numbers: OIL8X3, OIL32, OIL128
• Oil Backlight: Blue LED
• Oil Drain: Ball valve
• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
• Compressor: Rotary vane, two stage
• Motor: 3/4 HP Brushless DC
• RPM: 2500
• Power Source: 120 VAC @ 60 Hz 1 phase
• Nominal Current Draw: 6.0 AAC
• Ultimate Vacuum at Input Ports: 15 microns
• Operating Environment: 30°F to 122°F (-1.1°C to 50°C)
