Product Description

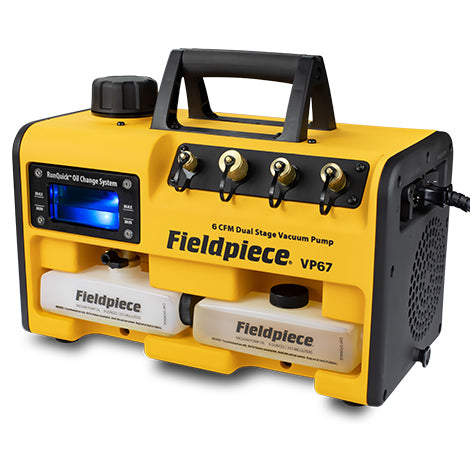

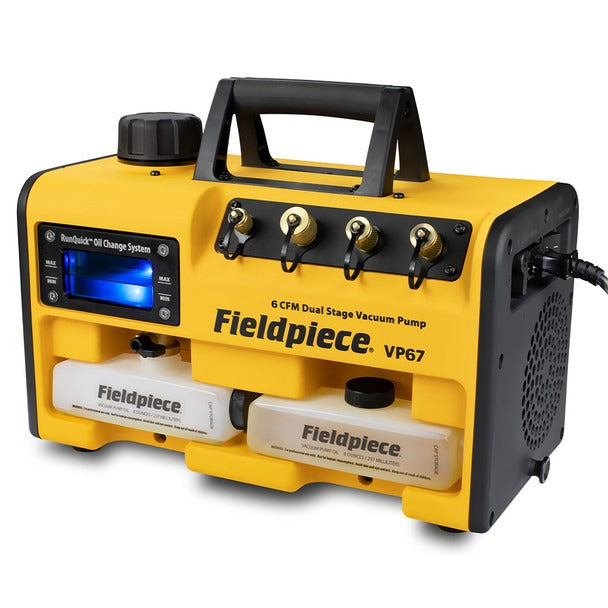

The Fieldpiece VP67-6 CFM is a dual-stage rotary vane HVAC vacuum pump with a 1/2 HP AC motor that delivers 6 CFM and an ultimate vacuum of 15 microns at the input ports. It includes the RunQuick oil change system for on-the-fly oil changes, a backlit oil reservoir, multiple hose ports (1/4", 3/8", 1/2"), an 8 oz oil capacity, quarter-turn gas ballast with LED indicator, and A2L certification.

  • 6 CFM flow rate with 15 microns ultimate vacuum and 1/2 HP AC motor
  • RunQuick oil change system for tool-free oil changes while running; backlit oil reservoir and ball valve oil drain
  • Multiple inline ports (1x 1/4", 2x 3/8", 1x 1/2"), compact footprint, and A2L certification

Product Highlights

Dual-stage 6 CFM pump with RunQuick oil change, 15 microns ultimate vacuum, multiple hose ports, and A2L certification.

Product Information

Standard Information

  • Brand: FIELDPIECE
  • Manufacturer Part Number: VP67-6 CFM
Technical Specifications
Flow Rate
6 CFM
Ultimate Vacuum
15 microns (at input ports)
Motor Power
1/2 HP AC
RPM
3440
Input Voltage
120 VAC @ 60 Hz 1 phase
Nominal Current Draw
5.0 AAC
Compressor Type
Rotary vane, two stage
Oil Capacity
8 oz (237 mL)
Oil Compatibility
Fieldpiece Vacuum Pump Oil (OIL8X3, OIL32, OIL128)
Oil Backlight
Blue LED
Oil Drain
Ball valve
Port Sizes
(1) 1/4", (2) 3/8", (1) 1/2"
Dimensions
7.9 in x 11.7 in x 16.0 in (201 mm x 296 mm x 406 mm)
Weight
29 lb / 13.2 kg
Operating Temperature
30°F to 122°F (-1.1°C to 50°C)
Certification
A2L certified
Included Items
VP67 vacuum pump, two 8 oz (237 mL) oil bottles, appropriate plug for country
