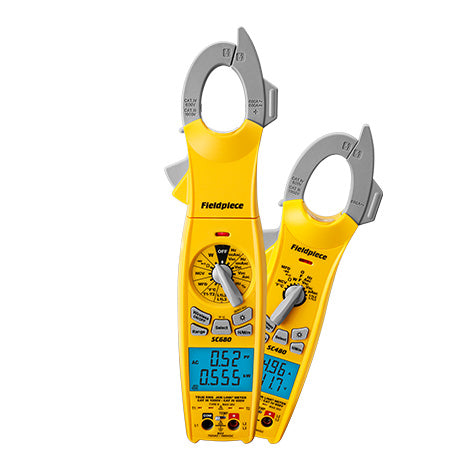

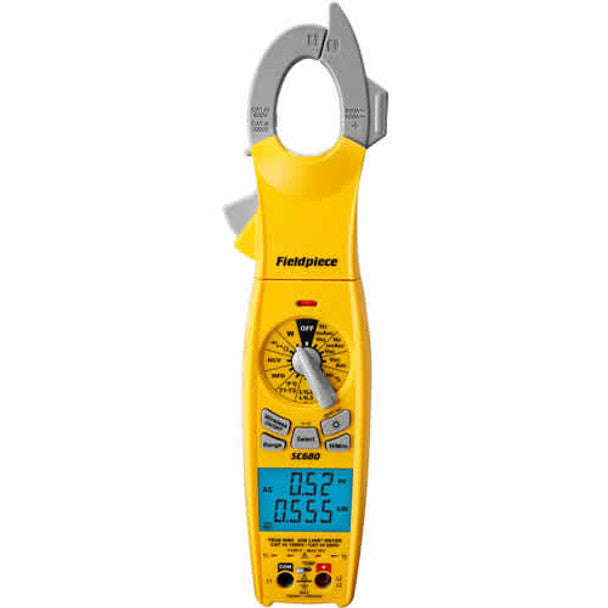

Fieldpiece FP-SC680 True RMS Wireless Clamp Meter

Product Description

The Fieldpiece FP-SC680 is a clamp meter designed for accurate True RMS readings of AC and DC voltage and current. This meter measures AC and DC amps up to six hundred amps and tracks energy consumption in kilowatts. With integrated Low Pass Filter technology, it facilitates reliable voltage readings on Variable Frequency Drives. Users can also capture starting current with InRush measurement and utilize Non-Contact Voltage detection. Additionally, this clamp meter provides phase rotation indication, dual temperature measurement with Type K inputs, and capacitance testing capabilities.

• Measures AC and DC voltage and current with True RMS readings up to seven hundred fifty volts AC and one thousand volts DC.
• Includes wireless Bluetooth connectivity for seamless integration with the Job Link System App.
• Enhanced functionality through features like dual temperature measurements and resistance testing capabilities.

Product Highlights

This clamp meter offers essential functionality for HVAC technicians and electricians, ensuring they can perform various measurements efficiently.

Product Information

Standard Information

• Brand: Fieldpiece
• MPN: FP-SC680

Technical Specifications

• True RMS Volt readings on AC: up to 750V
• True RMS Volt readings on DC: up to 1000V
• AC and DC amps: up to 600 amps
• Resistance range: up to 50M ohms
• Non-Contact Voltage detection: 24VAC to 600VAC
• Frequency range: through clamp 10Hz to 400Hz
• Weight: Approx. 480g
• Dimensions: 18.5 x 4 x 3.5 inches
