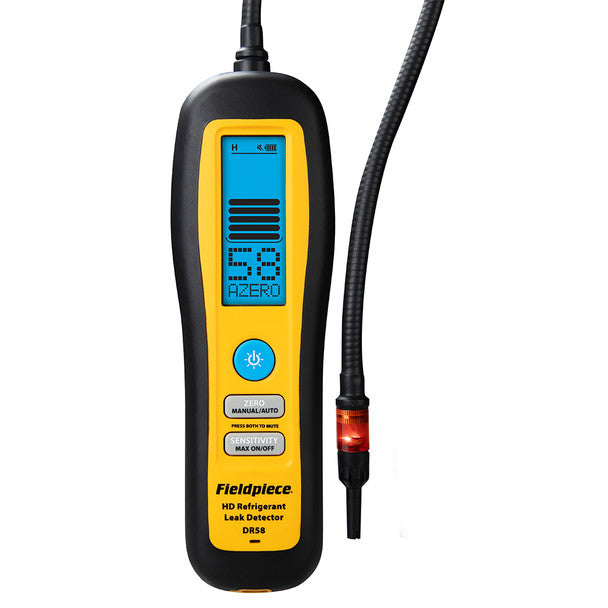

The FIELDPIECE FP-DR58 Heated Diode Refrigerant Leak Detector is designed to help HVAC professionals identify refrigerant leaks in various systems. This device detects HFC, CFC, HCFC, HFO, and blended refrigerants with precision.
Detects leaks as small as 0.03 oz/yr
Adjustable sensitivity levels: high, medium, and low
Approximately 18 hours of battery life
Product Highlights
This detector features an intuitive design with visual and audible alerts for effective leak detection in different environments.
Product Information
Standard Information
Battery Type: 3.7 VDC 2600mAh, non-replaceable
Sensor Type: Heated Diode
Technical Specifications
Sensor Life
300 hours typical
Sensitivity Levels
High, medium, low (selectable)
Maximum Sensitivity
0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
Detection Feedback
Red tip LED, LCD bar graph, LCD digits, beeper
Response Time
Less than 1 second typical
Recovery Time
Less than 10 seconds typical
Charge Time
6 hours typical with included charger
Auto Power Off
10 minutes without detection or button press
Operating Environment
32°F to 104°F (0°C to 40°C); less than 75% RH non-condensing
