Product Description

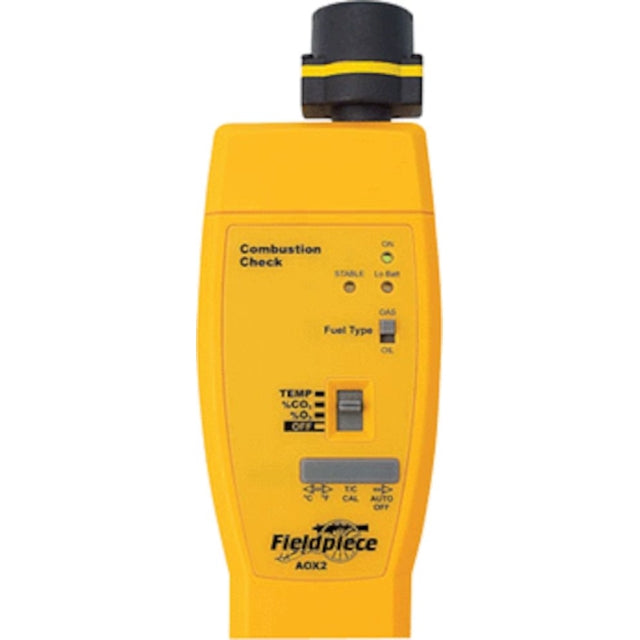

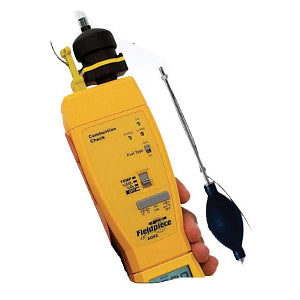

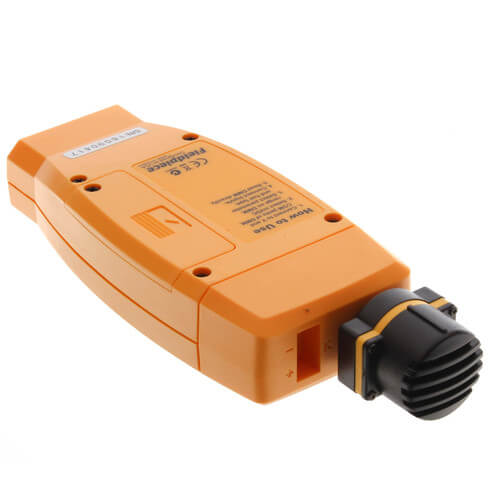

The FIELDPIECE AOX2 Combustion Check Accessory measures percent oxygen (%O2) and flue temperature and calculates percent carbon dioxide (%CO2). It is an affordable alternative to full-function combustion analyzers, designed for everyday combustion testing and tuning. It allows easy calibration of combustion equipment such as boilers or furnaces to the manufacturer's specified % CO2, or % O2.
- Works with any expandable Fieldpiece meter or any meter with mVDC ranges using Fieldpiece's detachable leads
- Measurements for most common fuel types - Gas and Oil
- Simple operation
Product Highlights
The AOX2 provides essential combustion measurements, including %O2, flue temperature, and calculated %CO2, streamlining equipment calibration and enhancing efficiency.
Product Information
Standard Information
-
Brand: FIELDPIECE
-
Manufacturer Part Number: AOX2
Technical Specifications
-
Application: Accessory
-
Operating Environment: 32°F to 122°F at <75% RH
-
Type: Combustion Check Accessory
-
Battery Life: 85 hours typical (alkaline)
-
Battery Type: 9V
-
Auto-Off: 15 minutes
-
Temperature Measurement Range: -58 to 1000 Deg F
-
Resolution: 0.1 Deg F
-
Accuracy: +/- 0.6 Percent
-
Operating Temperature Rating: 32 to 122 Deg F
-

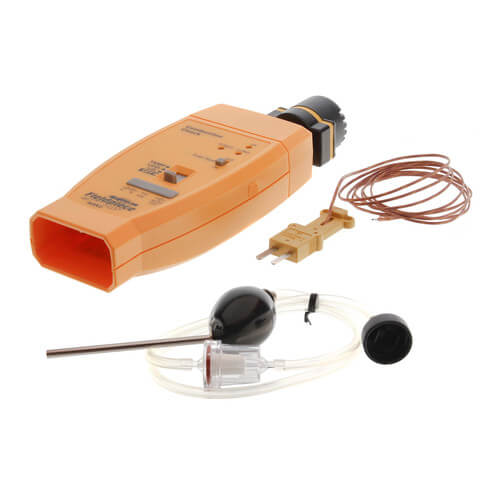

Includes: AOXP2 Flue Aspirator Pump, ATBF1 Hi-Temp K-Type Thermocouple, RAOX9 Filter Accessory Kit, 9 Volt Alkaline Battery, Operator's Manual
-
Approval: CE
-
Brand: Fieldpiece
-
Height: 13 in
-
Length: 2.6 in
-
Weight: 0 lb
-
Width: 4 in
