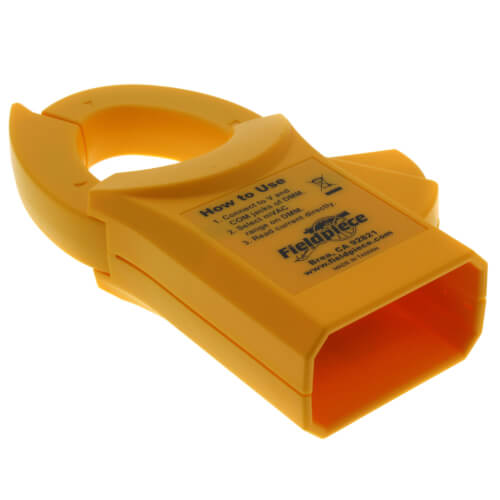

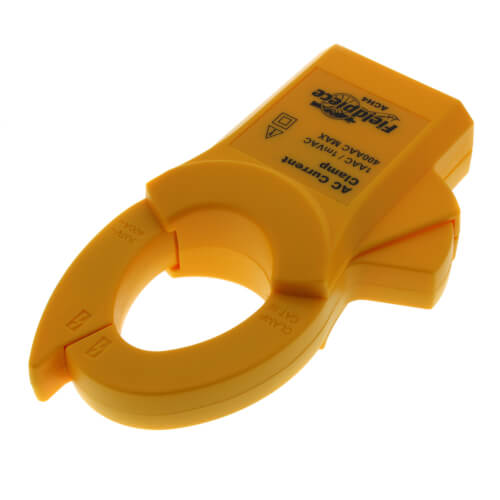

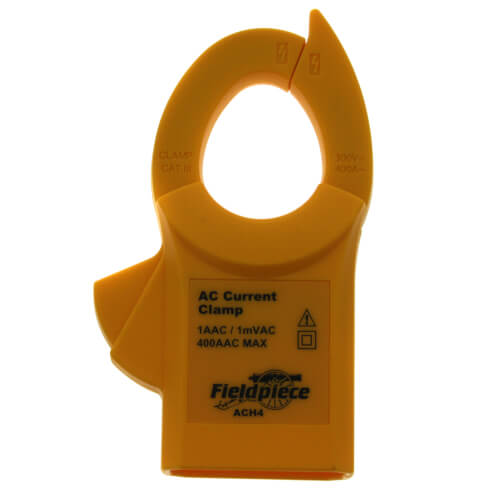

Fieldpiece ACH4 400A Amp Clamp Accessory

Product Description

The Fieldpiece ACH4 is an accessory head designed for measuring up to 400 AC amps efficiently. It includes a claw feature that allows users to isolate wires easily within the clamp. This allows for direct measurement of amperage converted to mVAC on compatible meters. The ACH4 is suitable for use with various Fieldpiece devices such as the Stick meter and other digital multimeters using detachable silicone leads.

• Measures up to 400 AC amps
• Claw feature for easy wire isolation
• Compatible with Fieldpiece Stick meters and other multimeters

Product Highlights

Designed specifically for HVAC applications, the ACH4 provides accurate readings even in sealed systems.

Product Information

Standard Information

• Brand: Fieldpiece Instruments
• MPN: ACH4

Technical Specifications

• Current Range: 1AAC to 400AAC rms
• Conversion Rate: 1AAC to 1mVAC
• Accuracy: ±(1.5%rdg + 0.2A) for 1 to 20AAC
• Max Conductor Diameter: 1.18 inches (30mm)
• Operating Environment: 32 to 122°F (0 to 50°C)
• Weight: 0.195 pounds
• Shipping Dimensions: 11 x 6.45 x 1.75 inches
• Resolution: 0.1A
