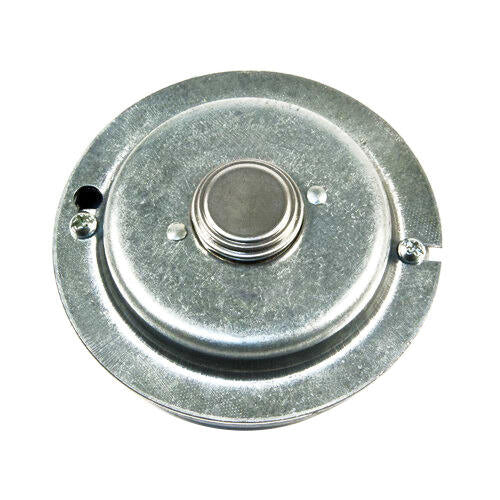

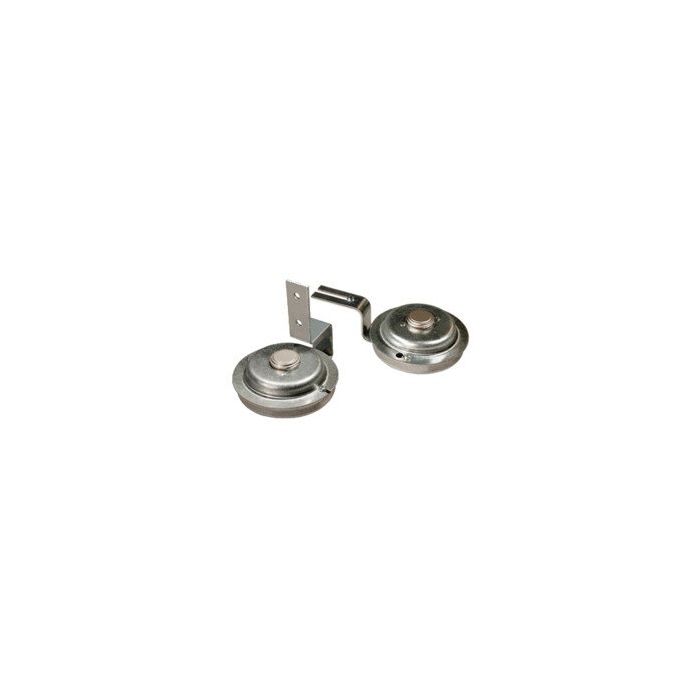

Field Controls 01170006 Spill Switch 180 Degrees Manual Reset

Product Description

The Field Controls 01170006 Spill Switch is a manual reset thermal safety switch designed to detect flue gas spillage. It operates at various electrical ratings including 12 amp at 120 VAC and 30 VDC, 6 amp at 240 VAC, and 1 amp at 120 VDC. This device is wired in series with the burner circuit to ensure safety by de-energizing the burner or burner control when flue gases are detected.

• Manual reset feature for easy operation
• Detects blocked flue and inadequate draft conditions
• SPST-NC configuration with silver contact

Product Highlights

This spill switch is essential for ensuring efficient operation and safety in heating systems. It is suitable for use in oil and gas applications, providing crucial protection against flue gas spillage.

Product Information

Standard Information

• Brand: Field Controls
• Part Type: Spill Switch 180 Degrees Manual Reset

Technical Specifications

• Electrical Ratings: 12 amp at 120 VAC, 30 VDC, 6 amp at 240 VAC, 1 amp at 120 VDC
• Type: SPST-NC
• Temperature Rating: 180 degrees Fahrenheit
• Item Number: FTS-6
• Replacement Part Numbers: X71-201
