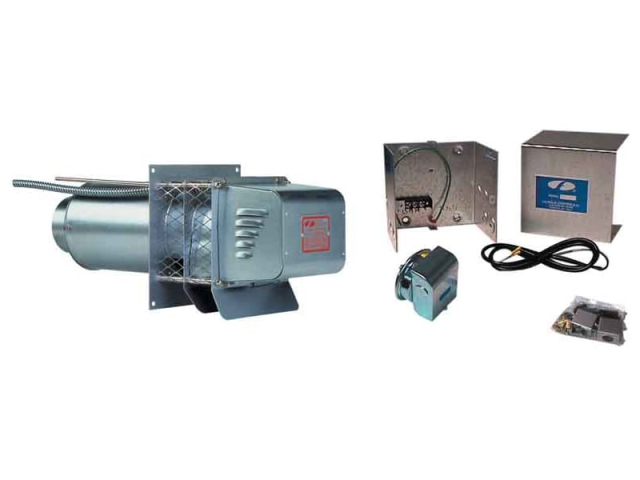

Field Controls FIELD-SWG-4HD SWG Power Venter

Product Description

The Field Controls FIELD-SWG-4HD SWG Power Venter is an essential component for gas and oil heating appliances. This unit combines the motor, blower, and vent hood, allowing for external mounting. It efficiently draws combustion gases through the wall using negative pressure. The design is specifically sized for the appliance's input firing rate and works with standard galvanized pipe without needing joint sealing.

• Maintains complete negative pressure in vent pipe.
• Compatible with standard galvanized pipe.
• Provides longer vent lengths compared to positive pressure systems.

Product Highlights

This power venter operates at 115 volts and 60 hertz, consuming 138 watts. The motor runs at a speed of 3000 RPM and includes thermal protection for safety. The unit also features extended venting capabilities.

Product Information

Standard Information

• Model: SWG-4HD
• Voltage: 115V

Technical Specifications

• Dimensions (ins.) A: 4
• Dimensions (ins.) B: 6
• Dimensions (ins.) C: 11.75
• Dimensions (ins.) D: 9.50
• Dimensions (ins.) E: 9.00
• Dimensions (ins.) F: 9.00
• Hz: 60
• Amps: 1.7
• Watts: 138
• RPM: 3000
• Thermal Protection: Yes
