Fibre-metal 69029109263 Union Fitting 3/4 in 3000lb Sw

Product Description

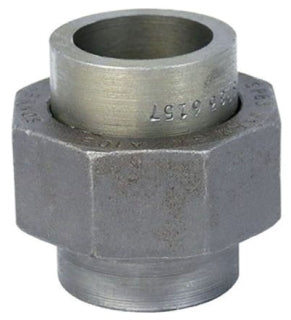

The FIBRE-METAL 69029109263 is a 3/4 inch, 3000-pound class socket weld union fitting manufactured to ASTM A105 carbon steel standards. Union fittings allow piping runs to be disconnected and reconnected without cutting or threading, making them a standard component in high-pressure industrial and mechanical systems. This forged steel union is built for demanding service conditions where a secure, leak-free connection is required at a removable joint. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in process piping, steam, and high-pressure fluid systems.

This 3/4 inch socket weld union is suited for use in industrial process lines, steam distribution systems, and high-pressure plumbing applications where ASME B16.11 forged fittings are specified. The 3000-pound pressure class rating makes it appropriate for heavy-duty service in both commercial and industrial installations. Socket weld construction provides a fillet-welded joint that eliminates threaded connections at the union, reducing potential leak paths in critical systems.

Key Features

• 3000-pound pressure class rating for high-pressure service
• Socket weld end connection for fillet-welded, thread-free joints
• ASTM A105 forged carbon steel construction for durability in demanding service
• 3/4 inch pipe size for standard line sizing in industrial and mechanical systems
• Union design allows in-line disconnection and reconnection without cutting pipe

Compatibility

Designed as an OEM-style replacement or new-installation socket weld union fitting for 3/4 inch high-pressure forged steel piping systems requiring ASTM A105 material compliance.

Installation Notes

Installation must be performed by a qualified pipefitter or licensed plumber in accordance with applicable mechanical and plumbing codes. Depressurize and drain the system completely before removing or installing any union fitting. Socket weld connections require proper fit-up and a certified weld procedure; follow ASME B31.1 or B31.3 as required by the application. Post-weld inspection and hydrostatic testing should be performed per project specifications before returning the system to service.

Technical Specifications

• Size: 3/4 inches
• Pressure Class: 3000 lb
• End Connection: Socket Weld
• Material: ASTM A105 Forged Carbon Steel
• Product Type: Union Fitting

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029109263
