Fibre-metal 69029108836 45 Degree Elbow 1-1/2 in 3000lb

Product Description

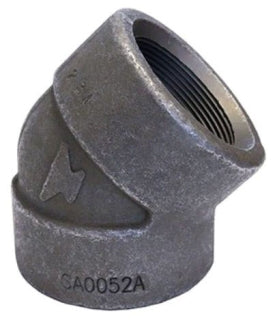

The FIBRE-METAL 69029108836 is a 1-1/2 inch 45 degree forged steel threaded elbow rated to 3000 lb pressure class. Built to ASTM A105 carbon steel material standards, this fitting changes pipe direction at a 45 degree angle in high-pressure piping assemblies. The threaded (screwed) end connections make field installation straightforward without welding equipment. Plumbers, pipefitters, and mechanical contractors use this fitting in industrial and commercial piping systems where directional changes and robust pressure ratings are required.

This elbow is suited for use in high-pressure steam, water, oil, and gas piping systems in commercial and industrial environments. The 3000 lb pressure class rating makes it appropriate for demanding service conditions. It is installed in threaded piping runs where a 45 degree change of direction is needed, commonly found in mechanical rooms, process piping, and HVAC hydronic systems.

Key Features

• 45 degree angle change for directional routing in threaded pipe systems
• 3000 lb pressure class rating for high-pressure service
• Forged carbon steel construction per ASTM A105 standard
• Threaded (screwed) end connections — no welding required for installation
• 1-1/2 inch nominal pipe size

Compatibility

Designed as an OEM-style threaded forged steel fitting for use in 1-1/2 inch NPT threaded piping systems rated to 3000 lb pressure class in commercial and industrial applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable code requirements including the International Plumbing Code and relevant ASME standards. Depressurize and isolate the piping system completely before removing or installing any fittings. Apply appropriate thread sealant or PTFE tape to male threads before assembly, and tighten to manufacturer-recommended engagement without over-torquing. Verify system pressure rating does not exceed the fitting class rating before returning the system to service.

Technical Specifications

• Nominal Pipe Size: 1-1/2 inches
• Angle: 45 degrees
• Pressure Class: 3000 lb
• Material Standard: ASTM A105 Carbon Steel
• Construction: Forged Steel
• End Connection: Threaded (Screwed)
• Product Line: FS

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108836
