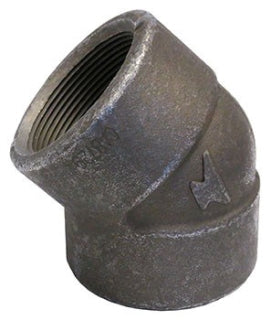

Fibre-metal 69029108781 45 Degree Elbow 2in 2000lb A105

Product Description

The FIBRE-METAL 69029108781 is a 2-inch, 2000-pound class forged steel screwed 45-degree elbow rated to ASTM A105 carbon steel specifications. This fitting redirects flow at a 45-degree angle in high-pressure threaded piping systems. The A105 material grade indicates normalized carbon steel suitable for elevated temperature and pressure service. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in industrial, commercial, and process piping applications where a full 90-degree change in direction is not required. The forged construction provides consistent wall thickness and strength at the fitting body compared to cast alternatives.

This 45-degree elbow is intended for use in 2-inch screwed forged steel piping systems rated at 2000 pounds working pressure class. Typical installations include steam, hydraulic, oil, gas, and water service lines in industrial plants, mechanical rooms, and commercial facilities. The threaded end connections conform to standard NPT configurations, allowing direct makeup with compatible schedule pipe and threaded fittings. It is suited for applications requiring a moderate direction change without the pressure drop associated with a tighter 90-degree turn.

Key Features

• 2000-pound pressure class forged steel construction for high-pressure service
• ASTM A105 carbon steel material grade for elevated temperature and pressure compatibility
• 45-degree angle change reduces flow turbulence compared to a 90-degree elbow
• 2-inch screwed NPT end connections for direct threaded assembly
• Forged body provides uniform wall thickness and structural integrity at the bend

Compatibility

Designed as an OEM-style replacement or standard forged steel screwed fitting for 2-inch, 2000-pound class threaded piping systems using ASTM A105 carbon steel components.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and piping codes, including ASME B31.1 or B31.3 as applicable to the service. Depressurize and isolate the line completely before disassembly or fitting makeup. Apply an appropriate thread sealant or PTFE tape rated for the service medium to the male threads before assembly. Do not over-torque the fitting, as excessive force can crack forged steel threads or cause joint failure.

Technical Specifications

• Size: 2 inches
• Pressure Class: 2000 lb
• Angle: 45 degrees
• End Connection: Screwed (NPT)
• Material: Forged Steel, ASTM A105
• Series: FS (Forged Steel)

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108781
