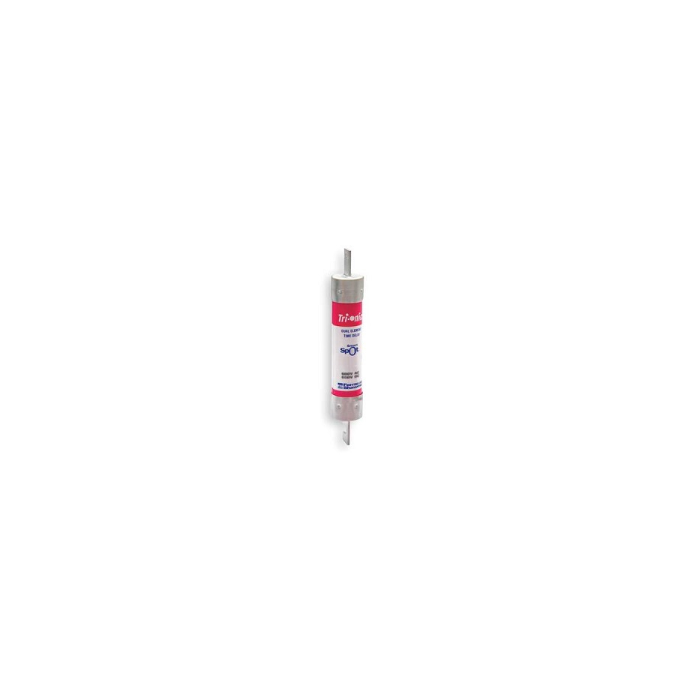

Ferraz Shawmut TRS80RID Fuse 80A 600V

Product Description

The Ferraz Shawmut TRS80RID is a reliable Class RK5 fuse rated for 80 Amps and 600 Volts. This dual-element fuse features a time delay and is suitable for both AC and DC applications. The design helps to prevent improper replacements. It is ideal for protecting motors, transformers, branches, and feeders.

• Class RK5 for high-performance applications
• Time delay design for improved operation
• AC and DC rated for versatile use

Product Highlights

This fuse offers robust protection for various electrical systems, minimizing downtime and enhancing safety.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: TRS80RID

Technical Specifications

• Amperage: 80 Amps
• Voltage: 600 Volts AC
• Class: RK5
• Element: Dual Element
• Time Delay: Yes
• Physical Size: 1 5/16 inches x 7 7/8 inches
• Current Limiting: Yes
• Rejection Style Design: Yes
• Interrupting Rating: 200,000 AIC @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• Body Material: Polyester
• Body Style: Blade
• Compatible Fuse Block Series: 2HKRFB, 6HKRFB
• Country of Origin: Mexico
• Diameter: 1 5/16 inches
• Standards: CSA, UL
• Package Type: Single Slotted
• Approvals: CSA, UL
