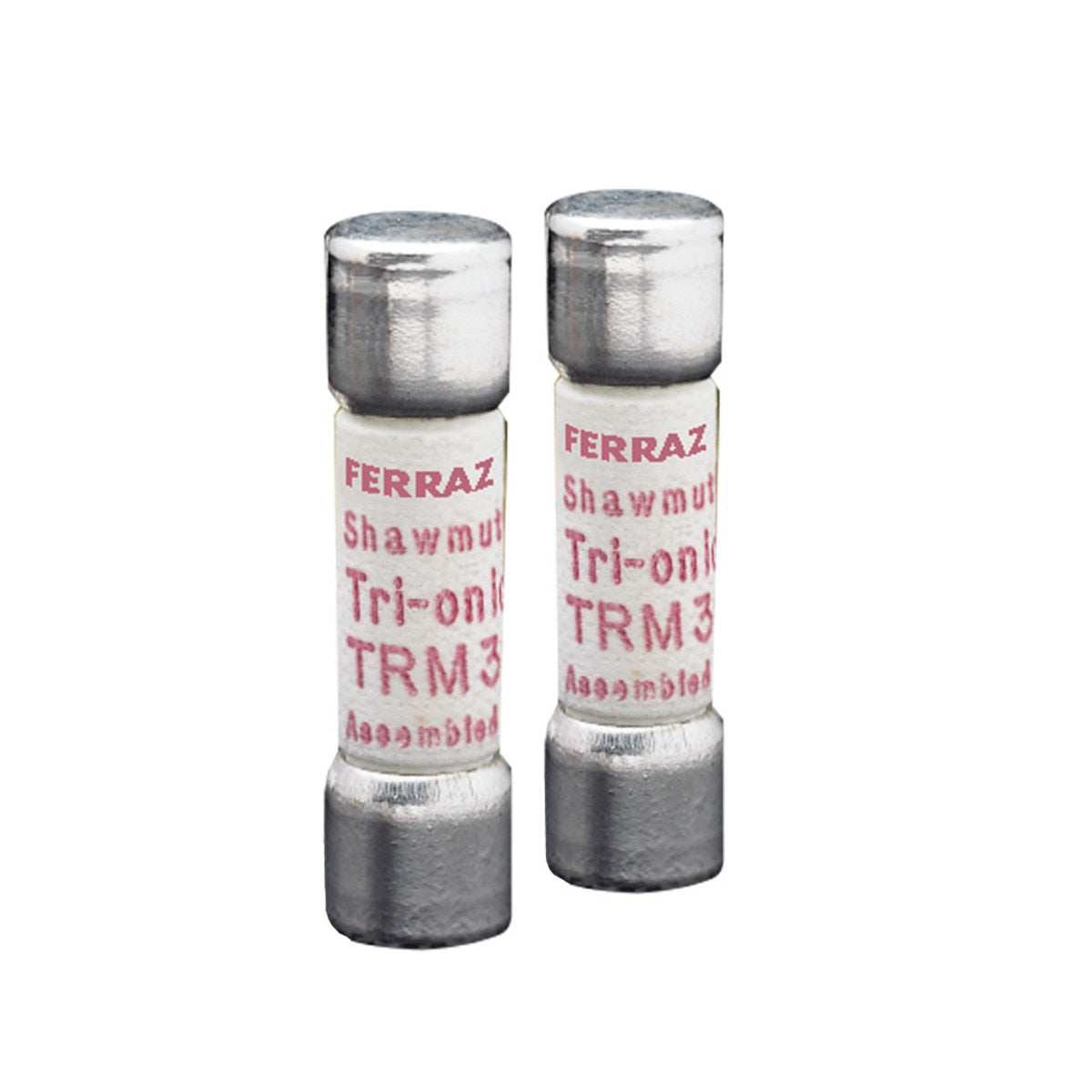

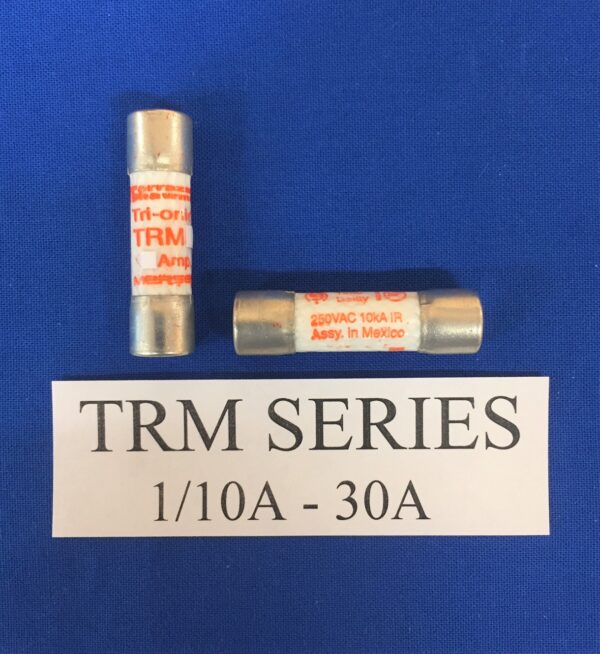

Ferraz Shawmut TRM6-1/4 Fuse 250VAC Time Delay Midget 10kA

Product Description

The Ferraz Shawmut TRM6-1/4 is a midget fuse designed for time-delay applications. It is rated at 250VAC and provides crucial protection for motors, transformers, and other equipment that experiences high inrush current. This fuse has a robust interrupting rating of 10kA, ensuring reliable performance in demanding conditions.

• Rated at 250VAC for high voltage applications
• Time-delay feature for circuits with high inrush
• Interrupting rating of 10kA for effective surge protection

Product Highlights

This fuse is ideal for a range of high inrush applications while not intended for branch circuit protection. It is designed to operate effectively under both 50 and 60Hz frequencies.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: TRM6-1/4

Technical Specifications

• Voltage Rating: 250VAC
• Amperage: 6-1/4A
• Interrupting Rating: 10kA
• Fuse Class: Midget
• Speed/Characteristic: Time Delay
• Frequency: 50/60Hz
• Maximum Operating Temperature: 176°F (80°C)
• Storage Temperature: -13° to 176°F (-25° to 80°)
• Approvals: UL 248-14; File E3395 CSA C22.2 No. 248.14
• Dimensions: 0.41 inches Diameter x 1.5 inches Length (10.41mm x 38.1mm)
• Weight: 0.28 oz
• REACH Compliant: Yes
