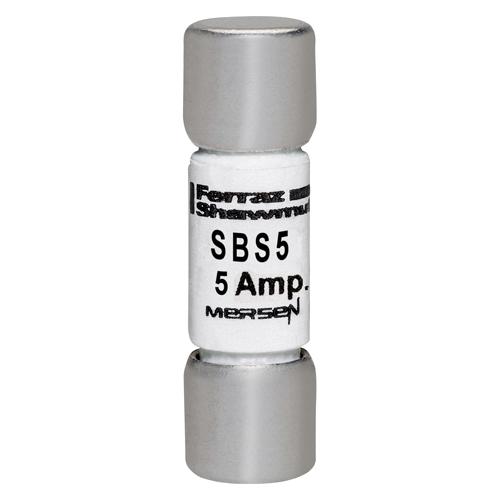

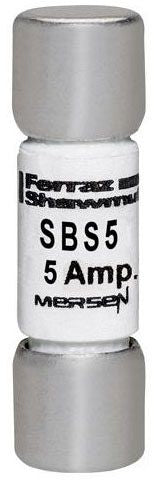

Ferraz Shawmut SBS5 midget fuse 5 A

Product Description

The FERRAZ SHAWMUT SBS5 is a fast-acting midget fuse designed for low voltage applications. This 5 A, 600 VAC fuse offers a 100 kA interrupt rating and is suitable for protecting control circuits and lighting ballasts. Its compact size provides design flexibility for smaller equipment and components.

• Fast Acting
• 600 VAC rating for all ampere ratings by UL standard 248-14 and CSA No. 59.2
• Interrupting rating of 100 kA RMS

Product Highlights

Midget fast-acting fuse with a 600VAC rating and a 100kA interrupting rating, designed for use in compact equipment.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• Manufacturer Part Number: SBS5

Technical Specifications

• Series: SBS
• Rejection/Non-Rejection: Non-Rejection
• Amperage: 5 A
• Voltage: 600 VAC
• Interrupt Rating: 100 kA
• Class: Midget
• Terminal Type: Ferrule
• Mounting Type: Clip Mount
• Body Style: Cylindrical
• Body Material: Fiberglass
• Body Diameter: 13/32 in
• Body Length: 1-3/8 in
• Fuse Size: 13/32 x 1-3/8 Inch
• Fuse Type: Fast Acting
• Type: Supplemental Protection
• Standard: UL Listed to Standard 248-14 CSA Certified to Standard C22.2 No. 248-14 RoHS Com
• Application: Control Circuits Lighting Ballasts Meter Circuits Electronic Circuits
• Manufacturer: FERRAZ SHAWMUT
• Voltage Rating: 600 VAC
• Amperage Rating: 5 A
• Special Features: Small unique physical size for maximum design flexibility and non-interchangeabi
• Physical Size: 13/32" x 1 3/8"
• Interrupting Rating: 100,000 AIC @ 600VAC
• UL Listed: Standard 248-14 (File: E33925)
• CSA Certified: Standard C22.2 No. 248.14
• Brand: Mersen/Ferraz Shawmut
• Mpn: SBS5
