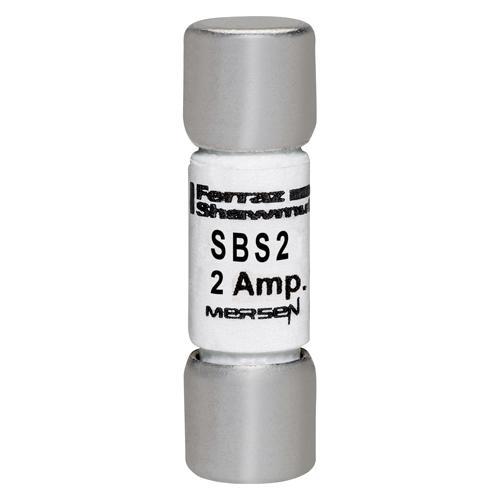

Ferraz Shawmut SBS2 Fuse

Product Description

The Ferraz Shawmut SBS2 is a fast-acting midget fuse suitable for protecting control circuits and lighting ballasts. This fuse is made with a fiberglass body and features ferrule terminals. It operates at a voltage of six hundred volts AC with an interrupting rating of one hundred thousand amps, making it reliable for critical applications.

• Fast-acting fuse for quick overload response
• UL, CSA, and RoHS approved for safety compliance
• Compatible with lighting and control circuit applications

Product Highlights

Designed for both efficiency and safety, the SBS2 fuse is ideal for electrical protection in various settings.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: SBS2

Technical Specifications

• Series: SBS
• Category: Fuses
• Type: Midget
• Amperage: 2 A
• Voltage Rating: 600 VAC
• Interrupting Rating: 100 kA
• Speed: Fast-Acting
• Approvals: UL, CSA, RoHS
• Dimensions: 0.41 inches diameter x 1.38 inches length (10.41 x 35.05 mm)
• Weight: 0.16 oz
• Contactor Type: Lighting
