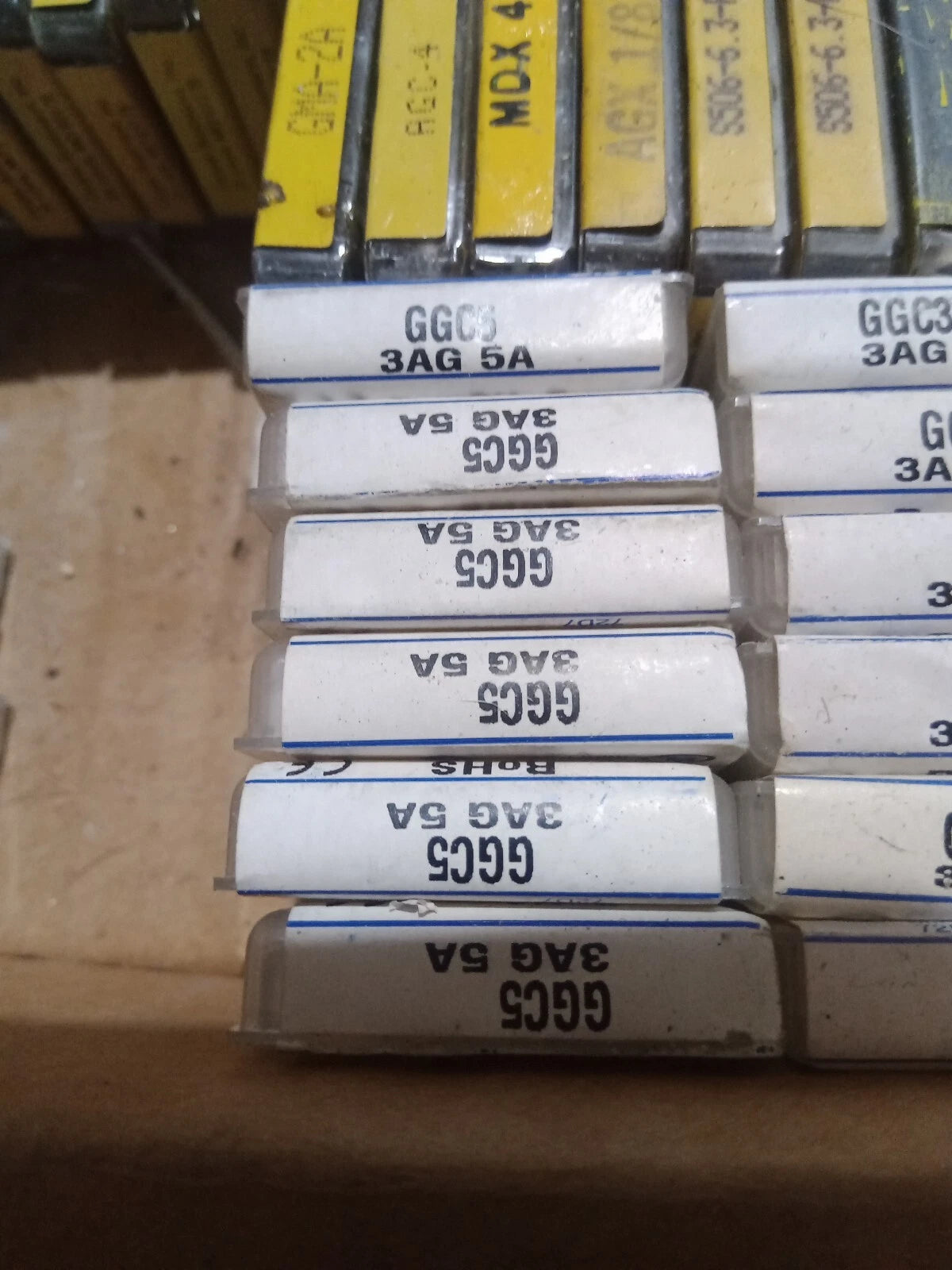

Ferraz Shawmut GGC5 Fast-Acting Fuse

Product Description

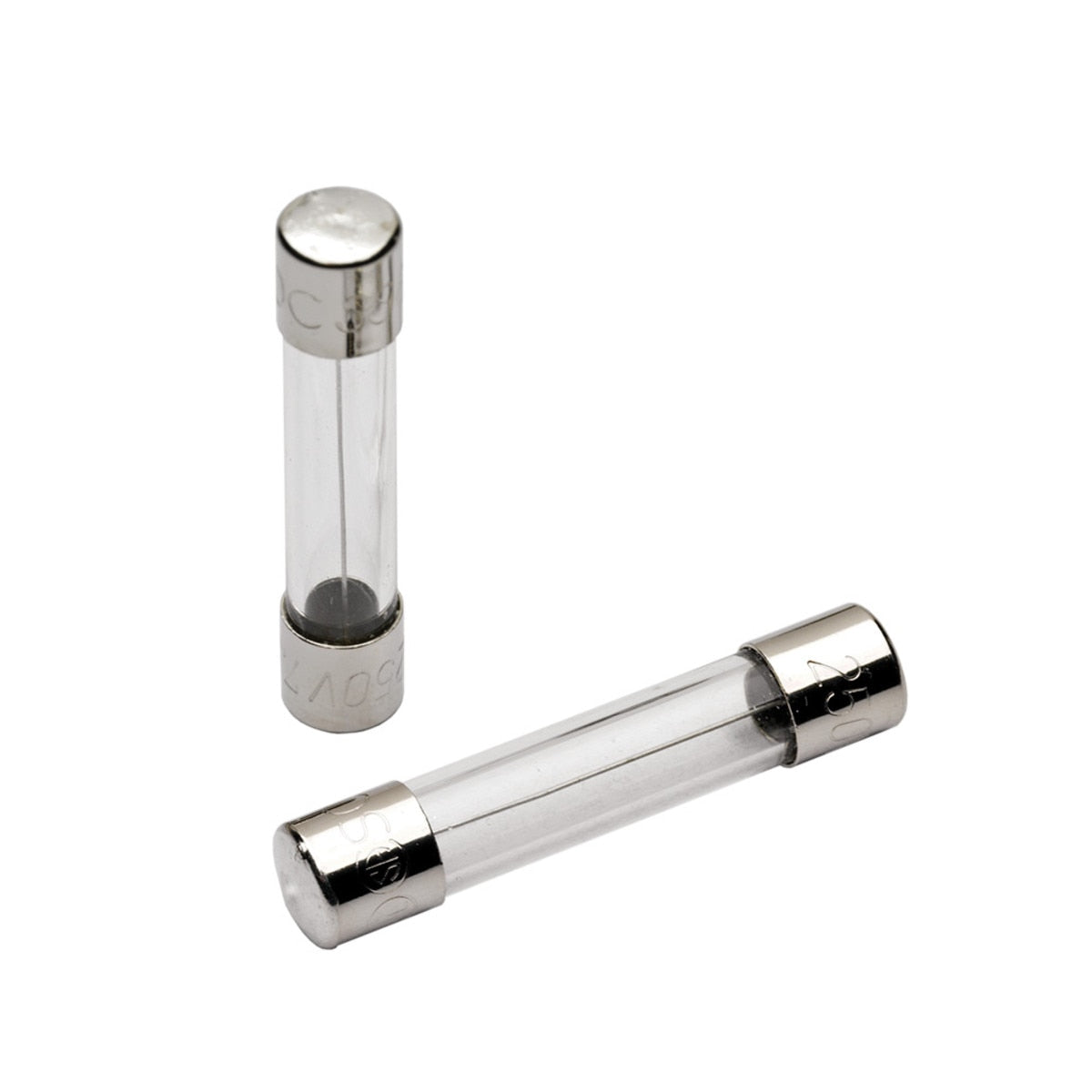

The Ferraz Shawmut GGC5 is a fast-acting miniature fuse designed for overcurrent protection. This fuse is rated for up to 250VAC and has a current rating of 5A. It features a glass body and ferrule connection, making it suitable for supplemental protection in various applications.

• Fast-Acting Fuse
• Voltage Rating: 250VAC
• Current Rating: 5A

Product Highlights

The GGC5 fuse provides reliable overcurrent protection. It is easy to install and fits well in multiple circuits. Ideal for HVAC, electrical, and general wiring uses.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: GGC5

Technical Specifications

• Type: Fast-Acting Fuse
• Rated Voltage AC UL: 250 V
• Amperage Rating: 5 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Supplemental
• Speed/Characteristic: Fast-Acting
• Fuse Size: 6.3x32 mm
• Mounting: Clip
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.25 in
• Product Length: 1.25 in
• Sell Pack Quantity: 5 EA
• Sell Pack Weight: 0.052 lb
• Sell Pack Width: 1.5 in
• Sell Pack Length: 1.25 in
• Sell Pack Height: 0.25 in
• Product Group: Miniature Fuses
• Body/Insulating Material: Glass
• Product Weight: 0.01 lb
• Interrupting Rate: 200A@250VAC, 10kA@125VAC
• Fuse Body: Glass Body 1/4 X 1-1/4
• Approvals: UL Listed, CSA Certified
