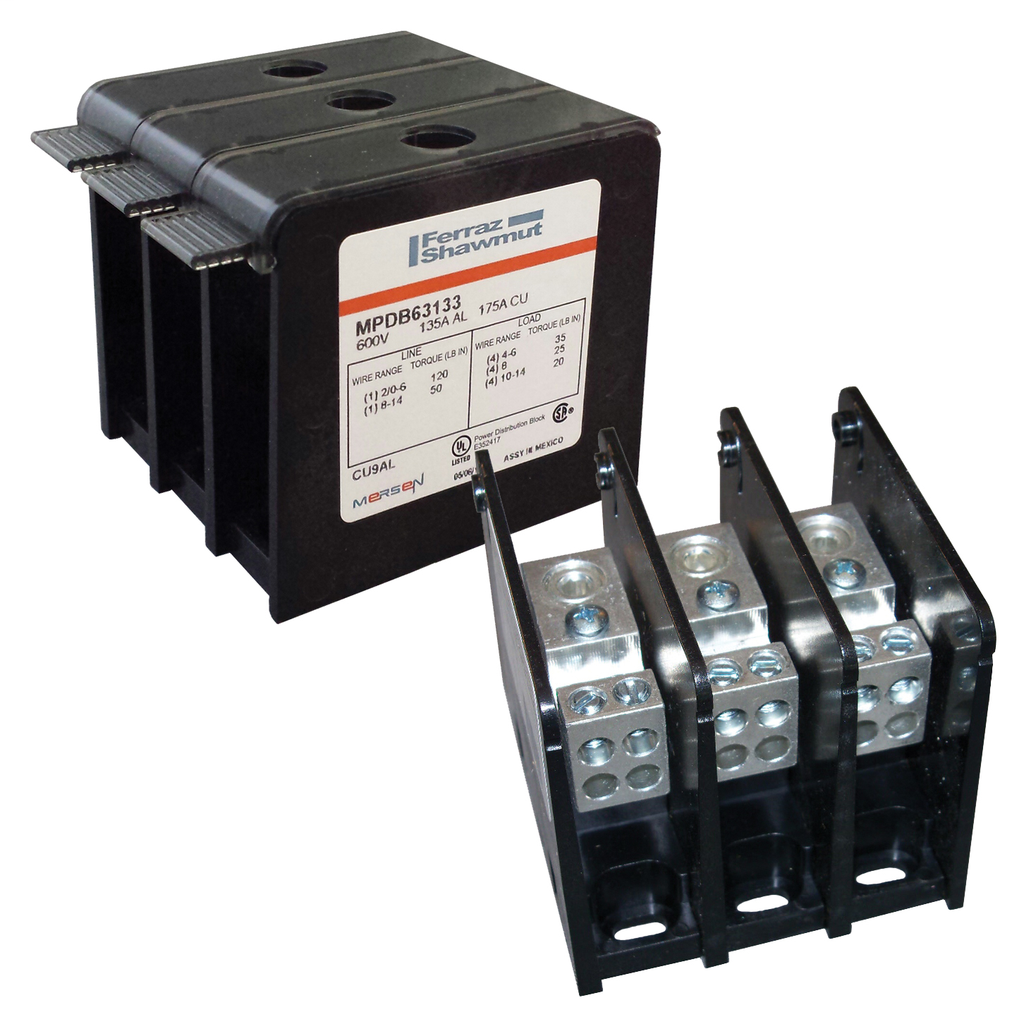

Ferraz Shawmut Canada, Inc. MPDB67253 PDB 3P AL INTERMED

Product Description

The Ferraz Shawmut Canada, Inc. MPDB67253 is a Next Generation Power Distribution Block (PDB). This product ensures safe splicing of cables and the division of primary power into secondary circuits. It fulfills the needs for secure junction tap-off points. All units are UL and CSA approved, adhering to spacing requirements set by UL508A and the National Electrical Code. PDB options allow for either single or dual conductor primary inputs and can support up to thirty secondary outputs. Specialty blocks are available for configurations with up to seven primary inputs. The MPDB series is categorized into three size options: miniature, intermediate, and large, available in both aluminum and copper.

• UL and CSA approved for safety.
• Supports up to thirty secondary outputs.
• Available in various sizes and materials.

Product Highlights

This distribution block is designed for reliability and compliance with the relevant electrical codes.

Product Information

Standard Information

• Brand: Ferraz Shawmut Canada, Inc.
• Manufacturer: Mersen

Technical Specifications

• Type: Open-Style Power Distribution Blocks
• Width: 5.28 inches
• Height: 3-1/4 inches
• Length: 3.08 inches
• Weight: 1.6 lbs
• Voltage: 1000 Volt
• Amperage: 250 Amp
• Applications: Cable splicing, splitting primary power into secondary circuits, fixed junction tap-off points
• Number of Poles: 3 Pole
• Hole Diameter: 0.75 inches
• Mounting Type: Direct Screw Mount
• Country of Origin: Mexico
