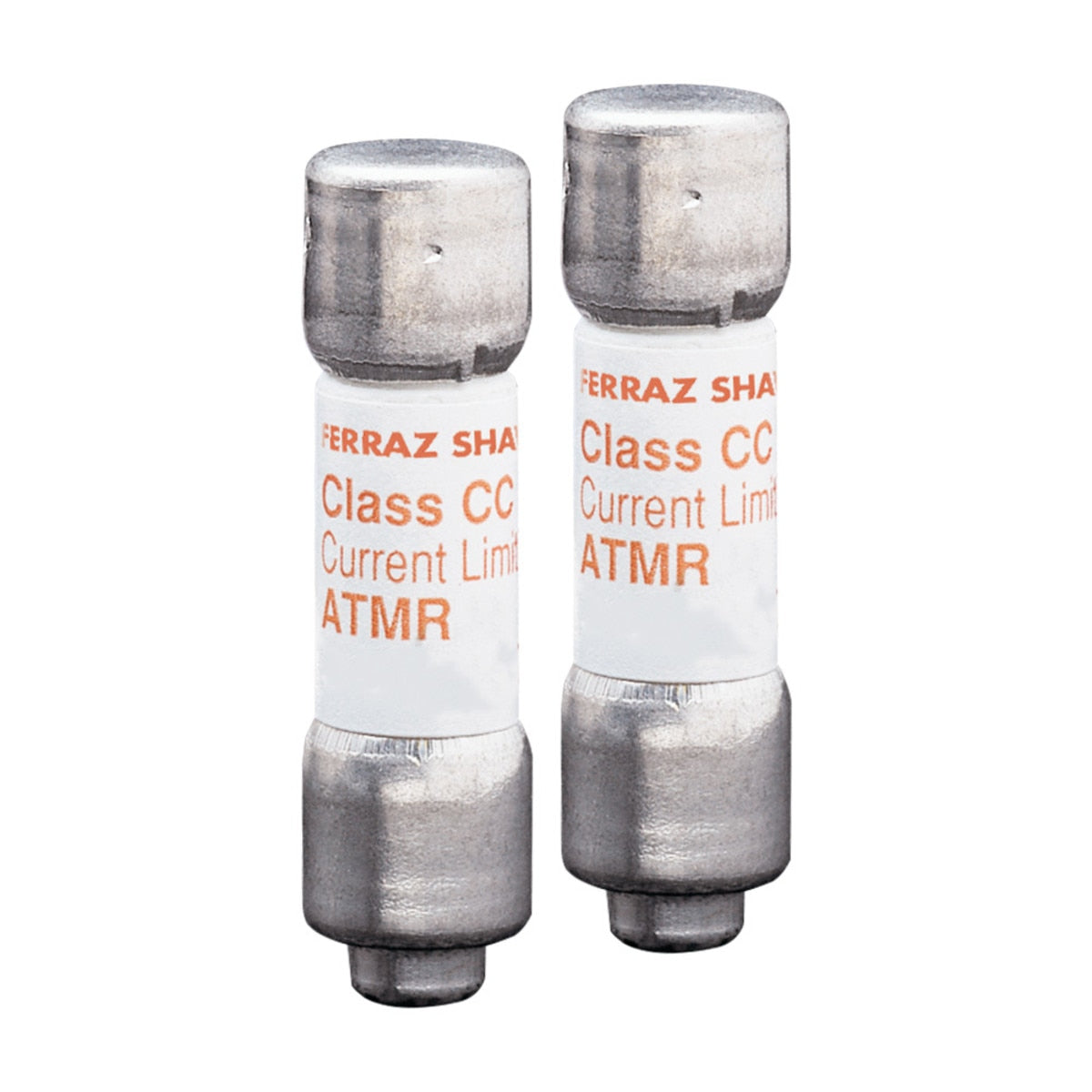

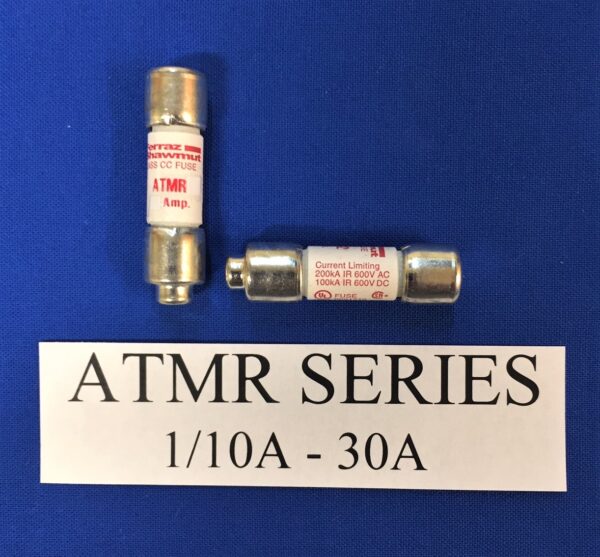

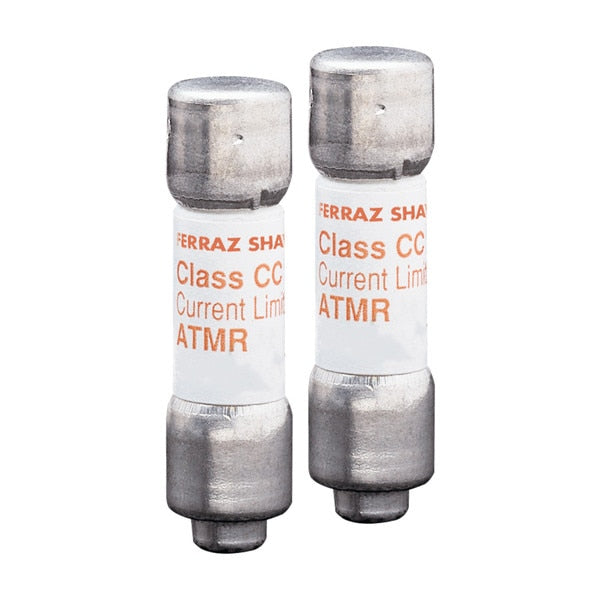

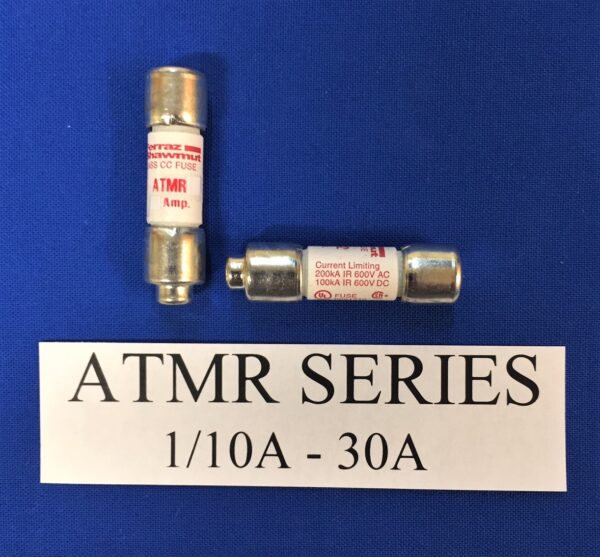

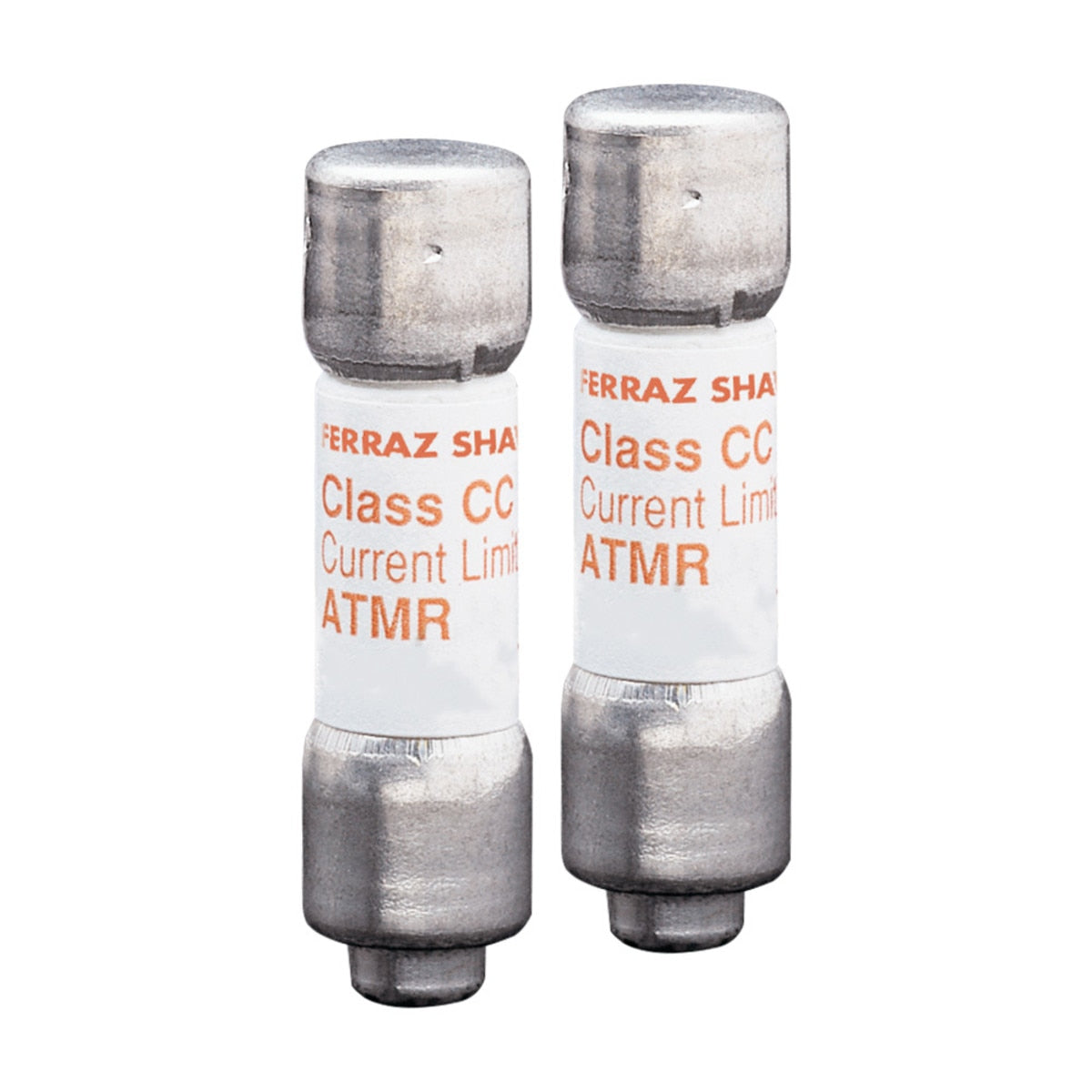

Ferraz Shawmut ATMR1/2 Class CC Fast-Acting Fuse

Product Description

The Ferraz Shawmut ATMR1/2 is a Class CC fast-acting fuse meant for branch circuit protection. It is appropriate for control circuits and transformers when dealing with high short circuit currents. This fuse provides current limiting protection to general circuits.

• Class CC fuse for branch circuit protection.
• Fast-acting for current limiting protection.
• Suitable for 600V applications.

Product Highlights

This fuse features a rejection style design that minimizes replacement errors when used with the recommended fuse blocks.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: ATMR1/2

Technical Specifications

• Amperage: 0.5 A
• Voltage Rating: 600VAC/DC
• Interrupting Rating: 200kA AC
• DC Interrupting Rating: 100kA DC
• Fuse Class: Class CC
• Fuse Speed: Fast-Acting
• Approvals: UL 248-4 File E2137, DC Listed UL 248, CSA C22.2 No. 248.4, UL, CSA, RoHS
• Fuse Shape: Cartridge Fuses
• Dimensions: 0.41 Dia x 1.5 L (10.41x38.1mm)
• Weight: 0.32 oz
