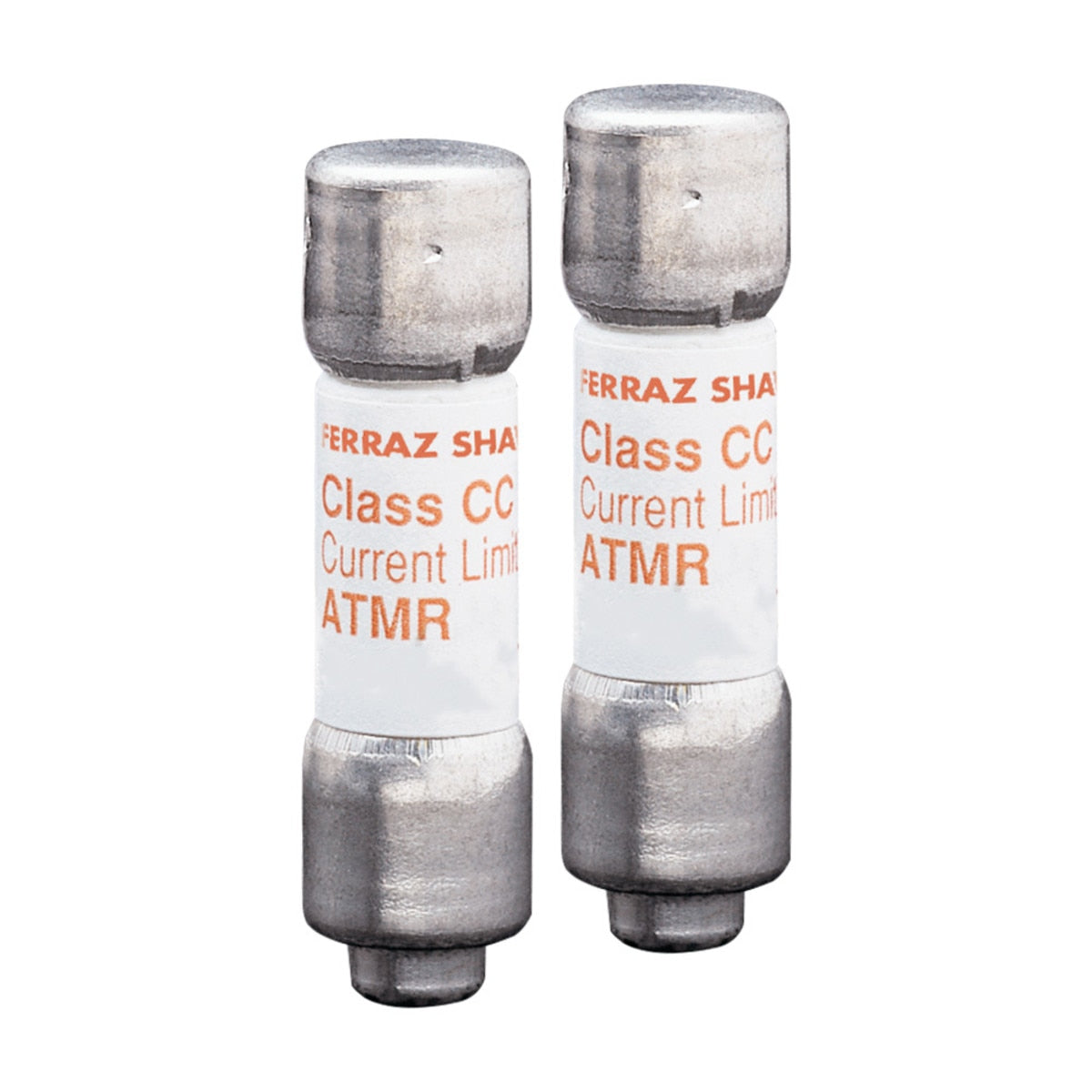

Ferraz Shawmut ATMR1-1/4 Fuse

Product Description

The Ferraz Shawmut ATMR1-1/4 is a Class CC, fast-acting fuse ideal for branch-circuit protection. This fuse is suitable for control circuits and transformers. It offers current-limiting protection for general circuits and prevents substitution with lower rated fuses.

• Class CC fuse
• Fast-acting characteristic
• Rated for 600 VAC and 600 VDC applications

Product Highlights

This fuse provides reliable protection in various electrical applications.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: ATMR1-1/4

Technical Specifications

• Fuse Class: Class CC
• Speed/Characteristic: Fast-Acting
• Rated Voltage AC: 600 V
• Rated Voltage DC: 600 V
• Ampere Rating: 1.25 A
• AC Interrupting Rating: 200 kA
• DC Interrupting Rating: 100 kA
• Mounting Type: Clip
• Connection/Terminal Type: Ferrule
• Connection/Terminal Material: Tin-Plated Copper
• Body/Insulating Material: GMG
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product Weight: 0.017 lb
• Frequency: 50/60 Hz
• Approvals: UL, CSA, RoHS
• RoHS Compliant: Yes
• Dimensions: 0.41 Dia x 1.5 L (10.41x38.1mm)
