Ferraz Shawmut ATDR6-1/4 Fuse

Product Description

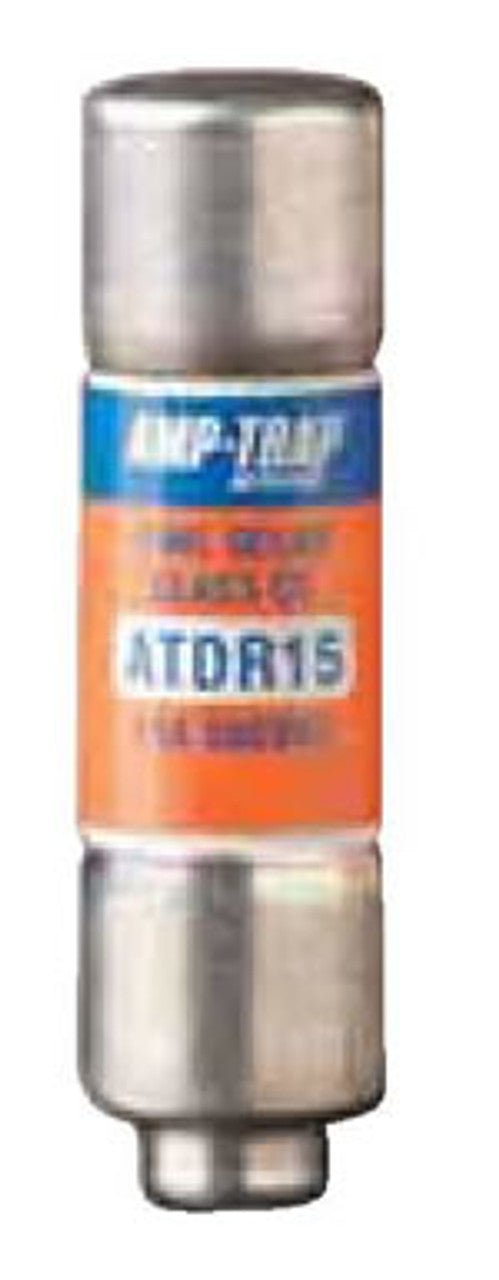

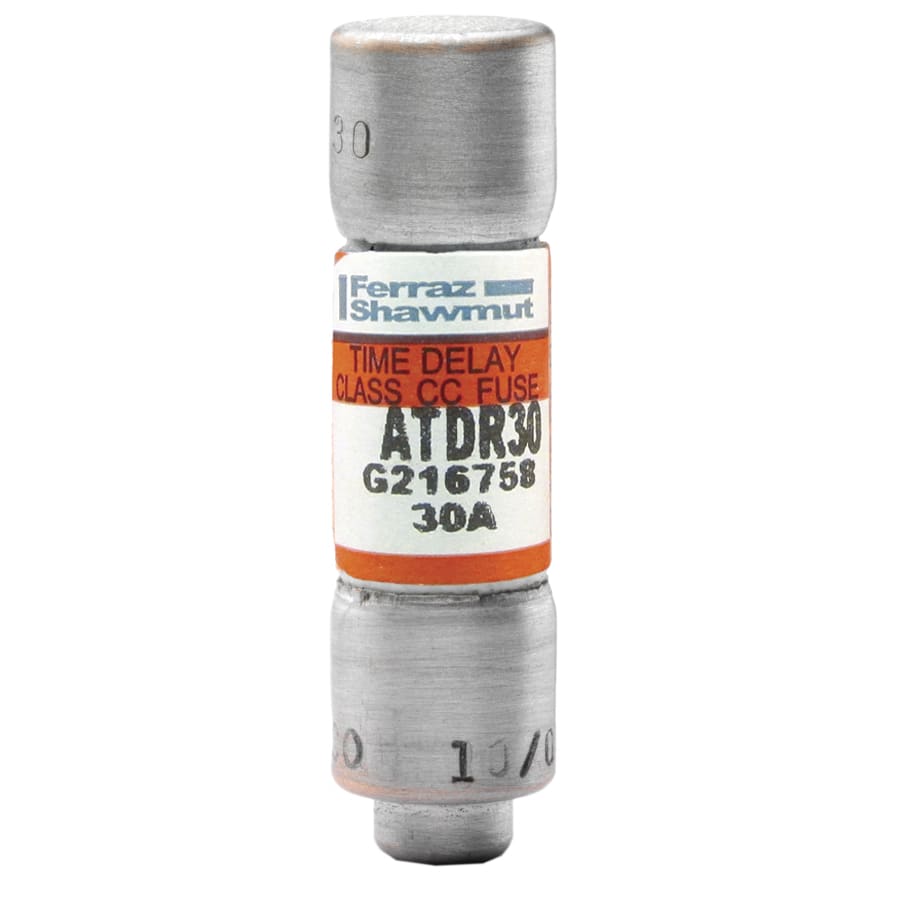

The Ferraz Shawmut ATDR6-1/4 is a Class CC time-delay fuse suitable for small motor and branch circuit protection. This fuse offers time delay to handle motor starting inrush currents efficiently. The product features a current-limiting design, a fiberglass body, and high-grade silica for effective arc quenching. Its rejection-style design helps prevent errors during replacement when used with compatible fuse blocks. The fuse also has a noticeable high-visibility orange label.

• Designed for small motors and branch circuits.
• Time delay accommodates inrush currents.
• UL listed and CSA certified for safety.

Product Highlights

This time-delay fuse is essential for protecting lighting, heating, contactors, and general loads.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: ATDR6-1/4

Technical Specifications

• Fuse Class: Class CC
• AC Voltage: 600VAC
• DC Voltage: 300VDC
• Interrupting Rating (AC): 200kA
• Interrupting Rating (DC): 100kA
• UL Listed: Standard 248-4
• CSA Certified: Standard C22.2 No. 248.4
• Amperage: 6.25 Amp
• Construction: Fiberglass
• Mounting Type: Clip
• Type: Time-Delay
• Sub Brand: Amp-Trap® 2000
