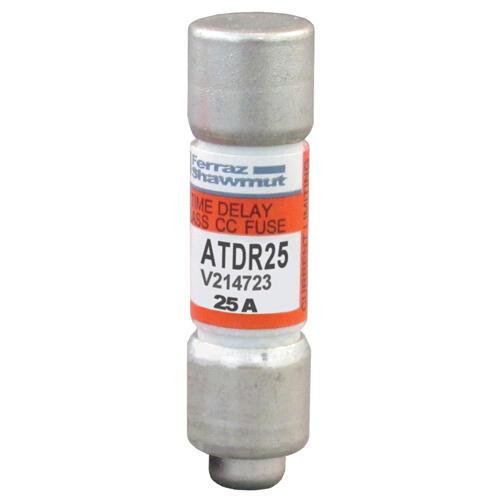

Ferraz Shawmut ATDR25 Class CC Time Delay Fuse

Product Description

The Ferraz Shawmut ATDR25 is a Class CC, time-delay fuse with a design focused on protecting small motors and sensitive components in branch circuits. This fuse minimizes the risk of damage from electrical faults while accommodating the inrush current encountered during motor start-up.

• Time delay functionality suits motor starting inrush currents.
• Class CC fuse ensures branch circuit protection.
• Ideal for small motor load applications.

Product Highlights

This fuse offers reliable protection for your circuits, allowing for frequent motor starts and stops without failure.

Product Information

Standard Information

• Manufacturer: Mersen / Ferraz Shawmut

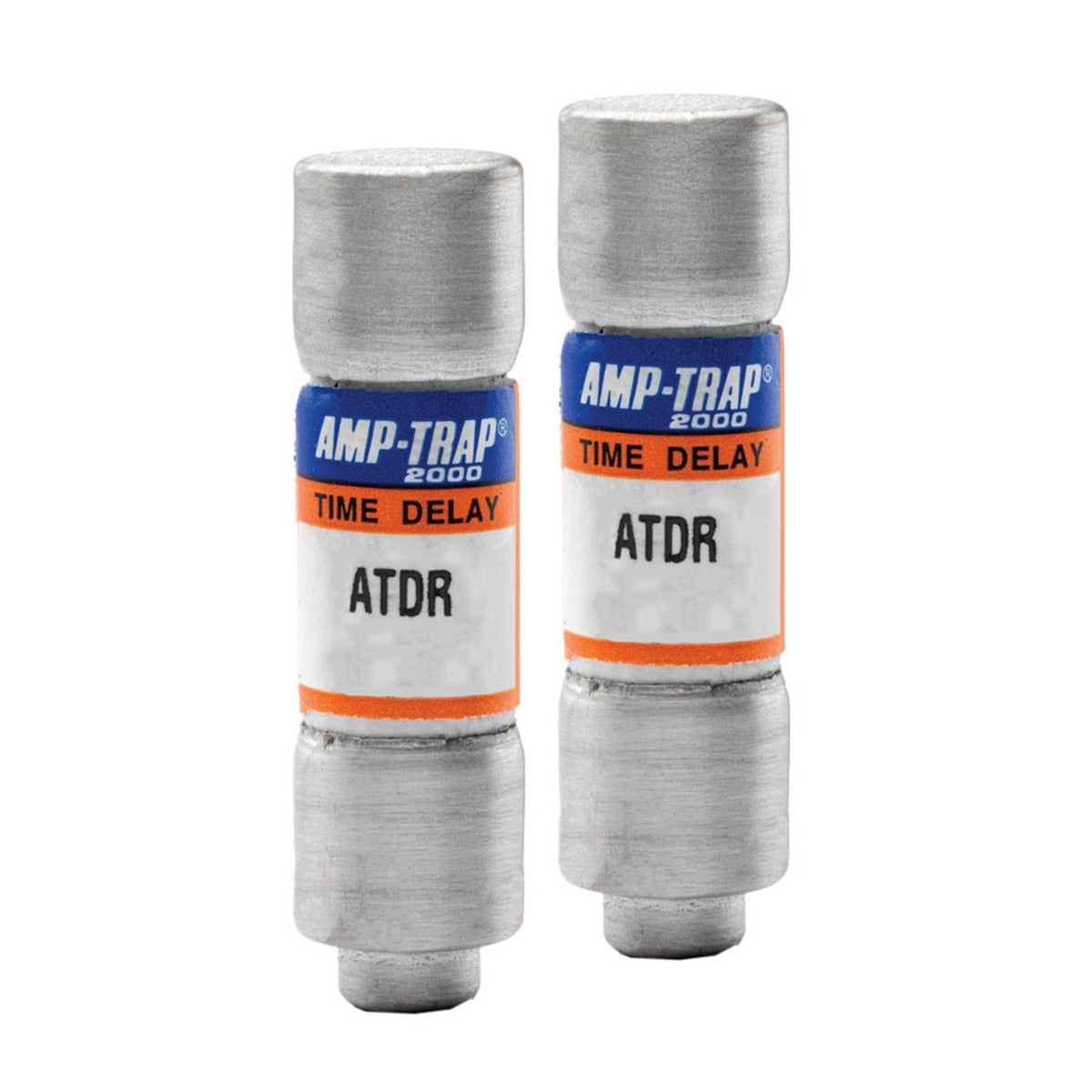

• Series: ATDR

Technical Specifications

• MPN: ATDR25
• Amperage: 25A
• Voltage: 600VAC
• Voltage DC: 300VDC
• Interrupting Rating AC: 200kA
• Interrupting Rating DC: 100kA
• Category: Fuses
• Fuse Type: Time Delay
• Approvals: UL 248-4 File E2137, DC Listed UL 248, CSA C22.2 No. 248.4
