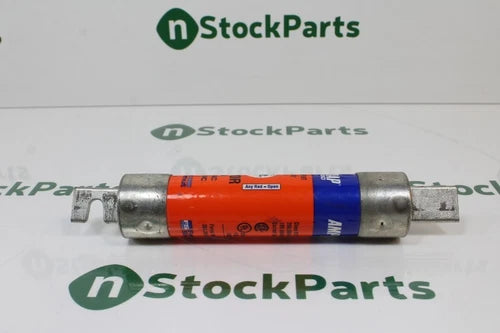

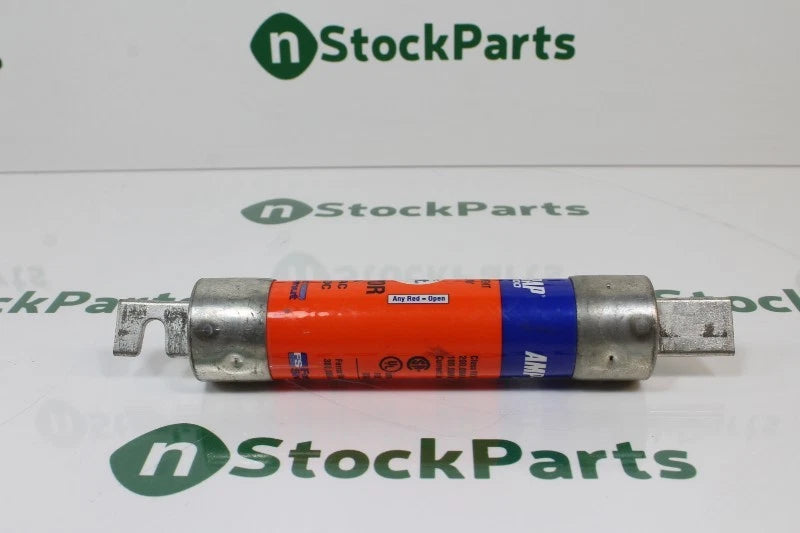

Ferraz Shawmut A6D70R Fuse

Product Description

The Ferraz Shawmut A6D70R is a reliable Class RK1 time-delay fuse designed to protect both motor and non-motor loads. This fuse delivers IEC Type 2 no damage protection for mains, feeders, and branch circuits. Its function includes short circuit protection which safeguards circuit components from damage. The A6D70R is also equipped to handle motor in-rush currents with its time-delay feature, making it suitable for various applications.

• Time-delay for motor in-rush currents
• Short circuit protection for circuit components
• SmartSpot indicator for easy monitoring

Product Highlights

The A6D70R fuse meets high standards for protection and reliability in electrical circuits.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: A6D70R

Technical Specifications

• Rated Voltage AC UL: 600 V
• Rated Voltage DC UL: 600 V
• Ampere Rating: 70 A
• Fuse Class: Class RK1
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: 200 kA
• Indication System: SmartSpot
• Connection/Terminal Material: Tin-Plated Copper
• Product Diameter: 1.31 inches
• Product Length: 7.88 inches
• Product Weight: 0.618 lb
• Frequency: 50/60 Hz
• AC or DC: AC/DC
• Body/Insulating Material: PolyTube
• Approvals: UL Listed to Standard 248-12, CSA Certified
• Sell Pack Quantity: 5 EA
• Sell Pack Weight: 3.24 lb
• Sell Pack Width: 6.66 inches
• Sell Pack Length: 8 inches
• Sell Pack Height: 1.38 inches
