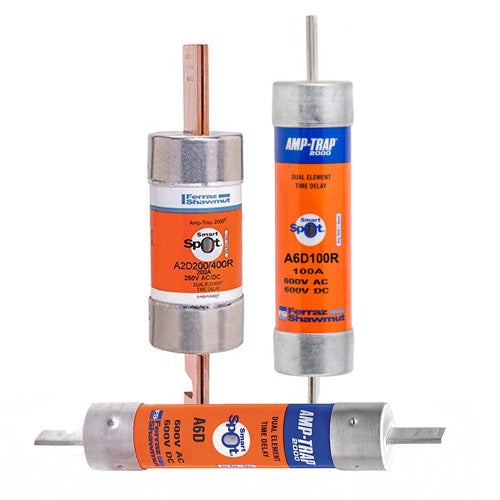

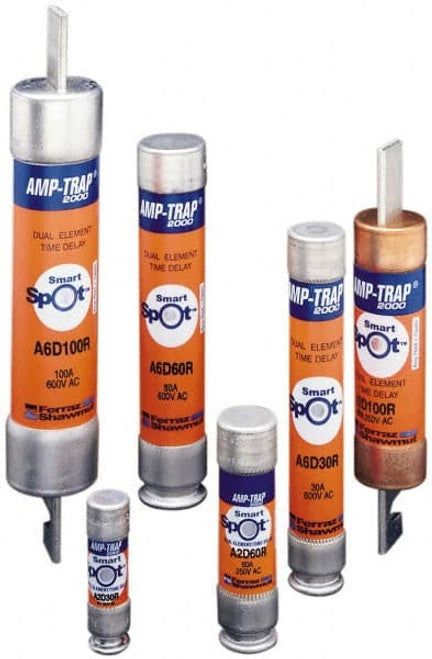

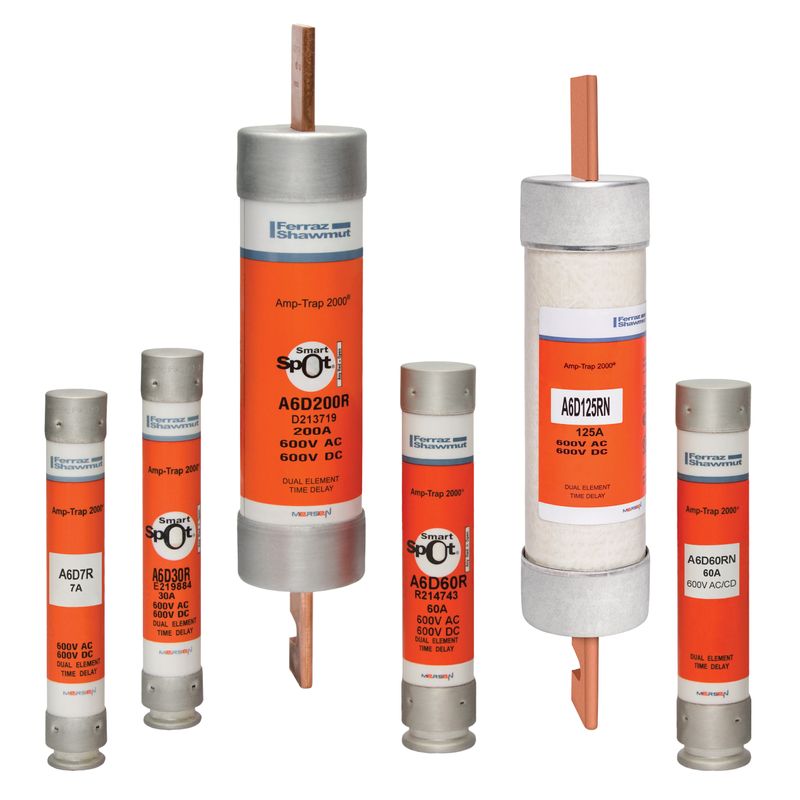

Ferraz Shawmut A6D600R Fuse

Product Description

The Ferraz Shawmut A6D600R is a Class RK1 time-delay fuse ideal for low voltage applications. This fuse is part of the Amp-Trap 2000 series, providing essential protection for mains, feeders, and branch circuits. It features short circuit protection and time delay functionality to manage motor in-rush currents effectively. The cylindrical design with blade connectors allows for easy installation and maintenance. This fuse has an interrupting rating of 200kA at 600V.

• Time-delay functionality for handling temporary overloads
• Designed for 600V AC and DC circuits
• Class RK1 fuse for efficient protection

Product Highlights

The A6D600R fuse is designed specifically for electrical professionals requiring reliable circuit protection in various systems.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: A6D600R

Technical Specifications

• Fuse Class: RK1
• Amperage: 600 A
• Voltage Rating: 600 Vac, 600 Vdc
• Interrupting Rating: 200 kA
• Fuse Type: Time Delay
• Fuse Body Type: Cylindrical
• Dimensions: 3.12 Dia x 13.38 L (79.25x339.85 mm)
• Weight: 5.9 lbs
• Mount Type: Clip
• Standards: CSA C22.2 No. 248.12 Certified, UL 248, UL Listed 248-12 File E2137
• Series: Amp-Trap 2000
• Material: Fiberglass, Polyester
• Rejection Setting: Rejecting
• Indicating Information: Indicating
• Overall Length (Inch): 13-3/8 in
• Overall Length (mm): 340.00 mm
• Overall Diameter (Frac): 3-1/8
• Overall Diameter (mm - 4 Decimals): 80.00 mm
