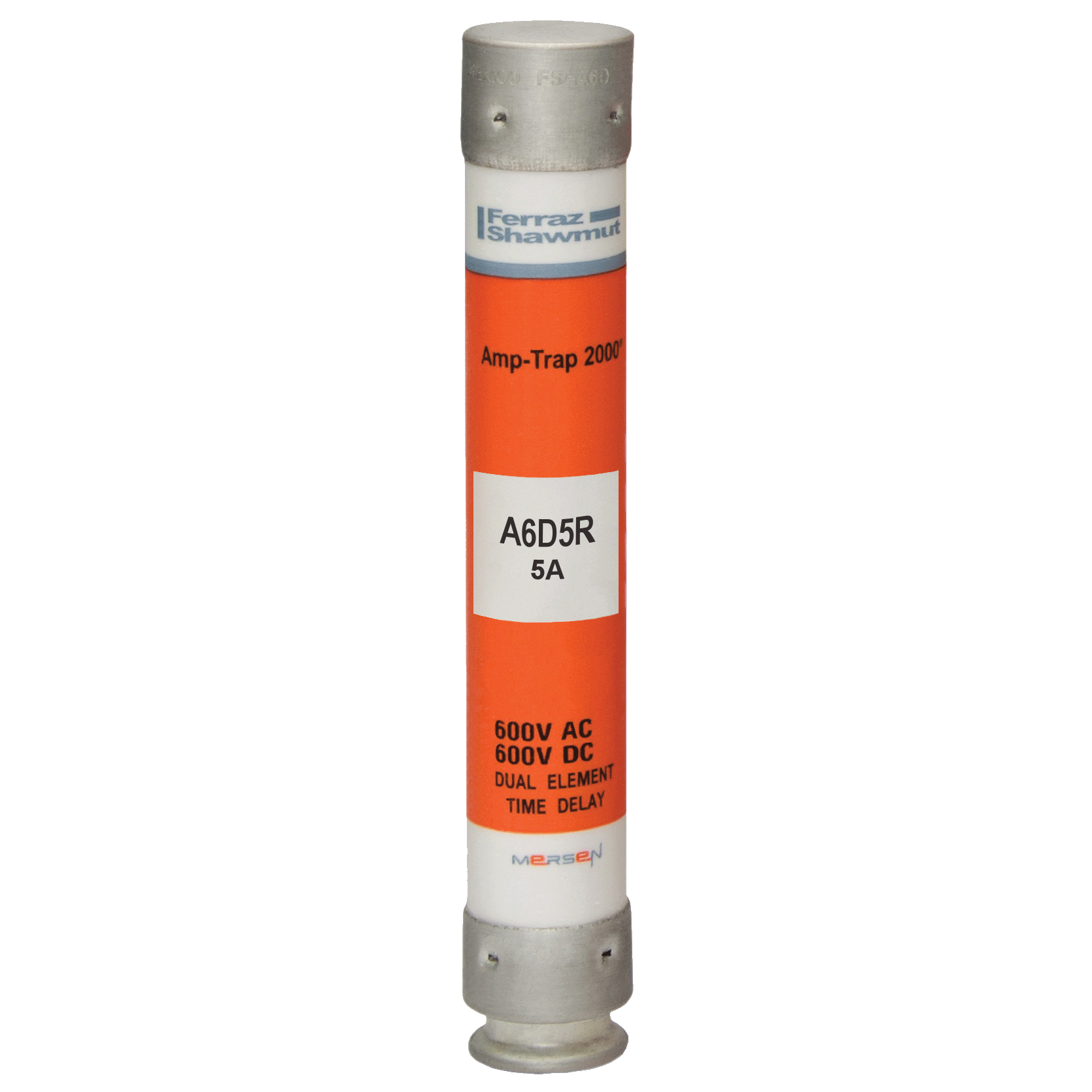

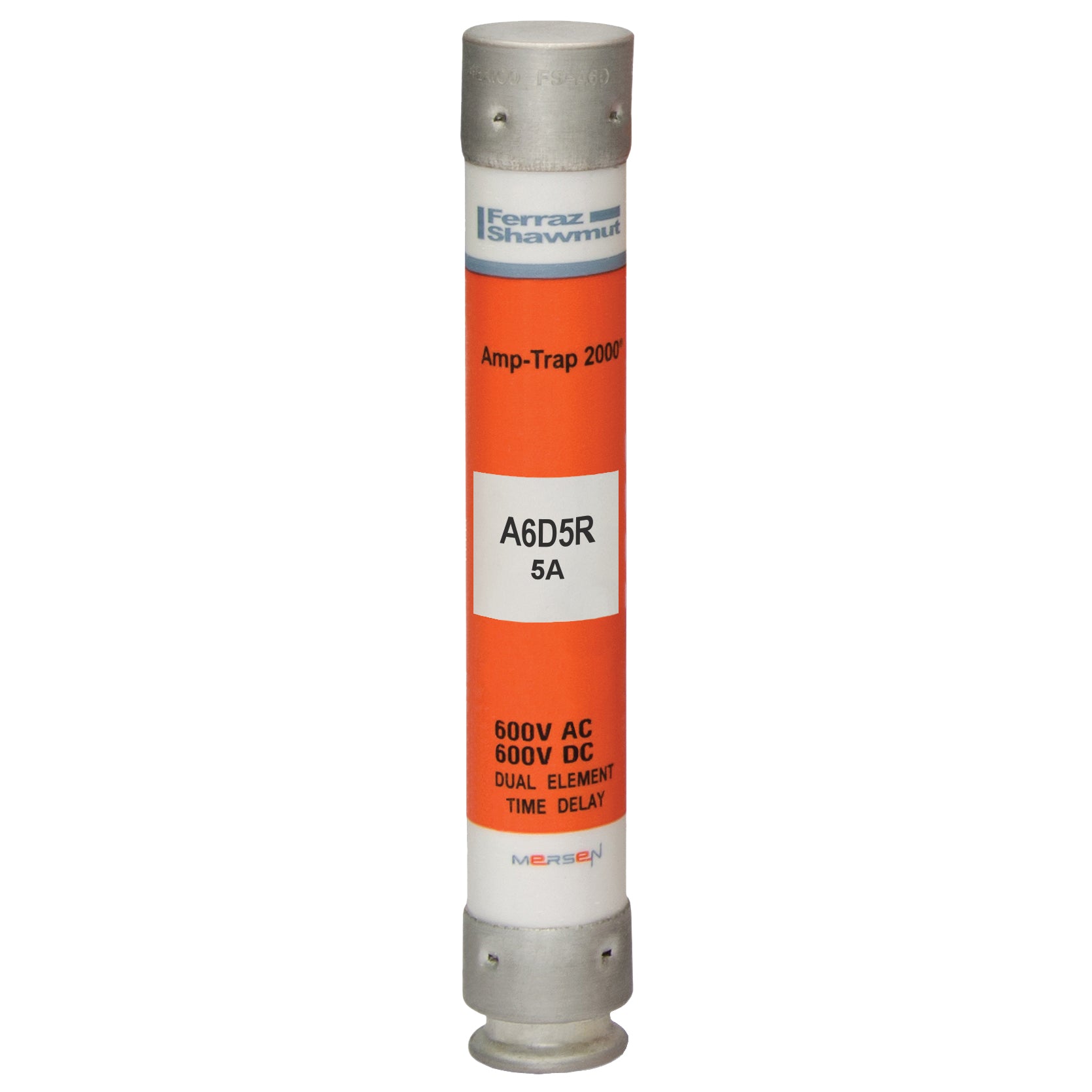

Ferraz Shawmut A6D5R Fuse 5A 600V Time-Delay Class RK1

Product Description

The Ferraz Shawmut A6D5R is a time-delay fuse with a rating of five amperes and a voltage capacity of six hundred volts. This Class RK1 fuse offers reliable protection against short circuits and overloads in various electrical systems. It is ideal for use in mains, feeders, and branch circuits, providing essential safety features for motor starters and other components.

• Time-delay mechanism accommodates motor in-rush currents.
• Current-limiting feature prevents damage under fault conditions.
• Visual indicator shows fuse status at a glance.

Product Highlights

This fuse is designed to open quickly during extreme fault situations, ensuring protection for your electrical system. The visual open fuse indicator provides clear status updates.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: A6D5R

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 600 VAC
• Current Type: AC/DC
• Class: RK-1
• Body Type: Cylindrical
• Body Size: 13/16 inches diameter x 5 inches length
• Material: Fiberglass
• Interrupt Rating: 200 kA
• Connection: Ferrule
• Terminal Type: Ferrule
• Mounting Type: Clip
• Length: 5 inches
• Width: 0.81 inches
• Height: 0.81 inches
• Indicating: Yes
• Standard: UL Listed to Standard 248-12, File E2137; DC Listed to UL Standard 248; CSA Certified to Standard C22.2, No. 248.12
• Series: A6D-R
