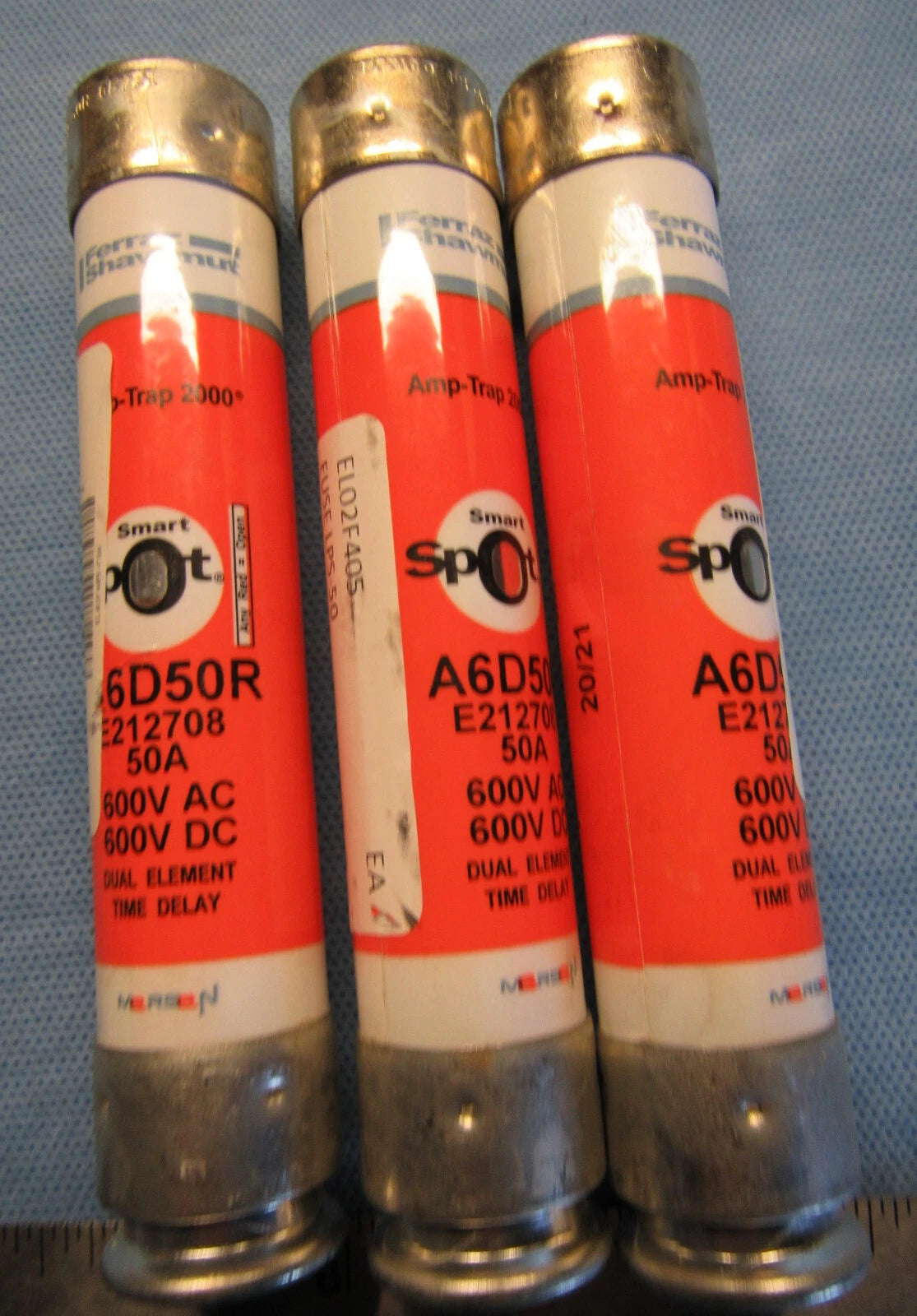

Ferraz Shawmut A6D50R Fuse 50 A (AC/DC) Replacement MPN

Product Description

The Ferraz Shawmut A6D50R is a time-delay fuse designed to protect mains, feeders, and branch circuits. This Class RK1 fuse provides reliable short circuit protection to prevent damage to various circuit components. It is compatible with both motor and non-motor loads, effectively managing motor inrush currents without causing nuisance tripping. The A6D50R fuse is rated for both AC and DC applications, making it versatile for different setups.

• Time-delay functionality for efficient motor starts and transformer inrush management.
• Current-limiting design to minimize low peak let-thru current.
• Durable fiberglass body ensures dimensional stability under various conditions.

Product Highlights

The A6D50R fuse is essential for safeguarding electrical circuits and is ideal for use in residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: A6D50R

Technical Specifications

• Amperage Rating: 50 A
• Voltage: 600 VAC/VDC

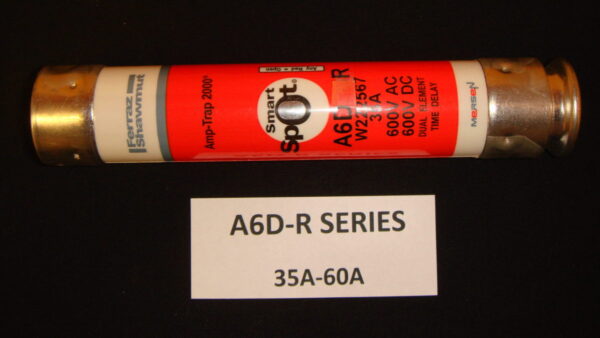

• Series: A6D
• Catalog / Class: RK1
• Fuse Speed: Dual Element and Time Delay
• Current Type: AC/DC
• Fuse Type: General Purpose
• Fuse Body Type: Cylindrical
• Overall Length: 5.5 inches
• Overall Diameter: 1.06 inches
• Material: Fiberglass, Polyester
• Mount Type: Clip
• Standards: CSA C22.2 No. 248.12 Certified, UL 248
• Interrupting Rating: 200 at AC kA
