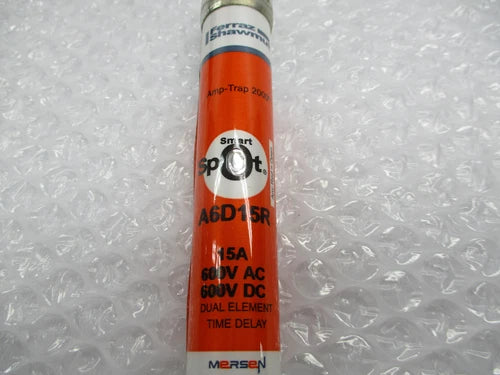

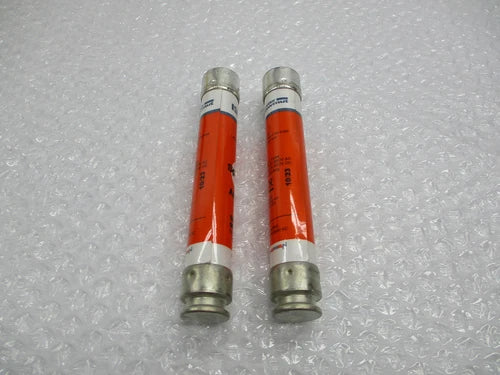

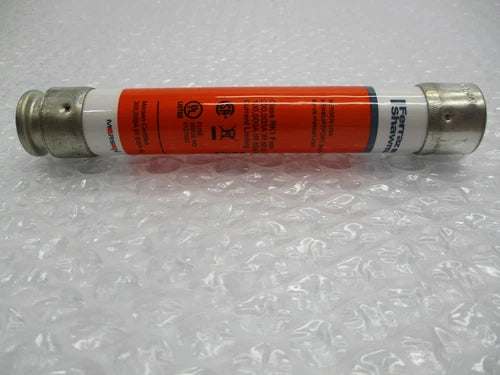

Ferraz Shawmut A6D15R Fuse

Brand: FERRAZ SHAWMUT
SKU: A6D15R
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$32.89
$32.89
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Ferraz Shawmut A6D15R is a time-delay fuse suitable for general-purpose applications. This Class RK1 fuse with a cylindrical body is rated for both six hundred volts AC and six hundred volts DC operation. It effectively protects mains, feeders, and branch circuits.

  • Time-delay fuse
  • Rated for 600Vac and 600Vdc
  • Interrupting rating of 200kA AC and 100kA DC

Product Highlights

This fuse type offers reliable protection for electrical systems while ensuring compliance with industry standards.

Product Information

Standard Information

  • Brand: Ferraz Shawmut
  • MPN: A6D15R

Technical Specifications

  • Fuse Type: General Purpose
  • Fuse Class: RK1
  • Amperage: 15.00A
  • Fuse Timing: Time Delay
  • Fuse Body Type: Cylindrical
  • Overall Length: 5 inches
  • Overall Diameter: 21.00 mm
  • Material: Fiberglass, Polyester
  • Mount Type: Clip
  • Interrupt Rating: 200 kA
  • Approvals: UL, CSA
  • Dimensions: 0.81 Dia x 5 L (20.57x127 mm)
  • Item Weight: 2.24 oz
