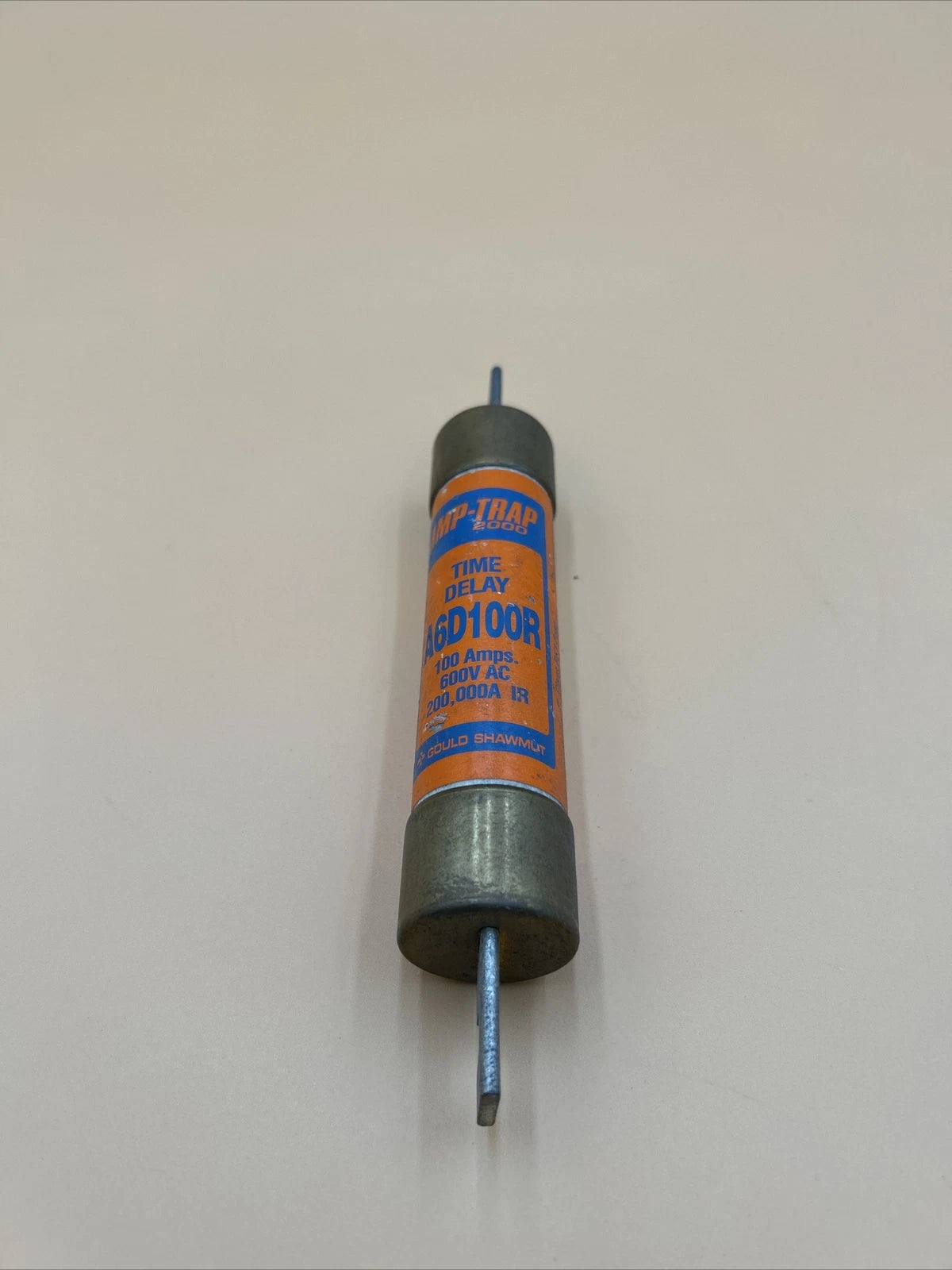

Ferraz Shawmut A6D100R Fuse

Product Description

The Ferraz Shawmut A6D100R is a time-delay fuse suitable for circuit protection. This fuse serves as an Amp-Trap 2000 fuse, providing IEC Type 2 no damage protection across mains, feeders, and branch circuits, accommodating motor and non-motor loads. It ensures protection against short circuits while allowing for motor in-rush currents. The fuse features a SmartSpot indicator, which facilitates visual detection of open fuses, making it ideal for replacing Class H, K, or RK5 fuses.

• Time-delay functionality manages motor in-rush currents.
• Includes a visual open fuse indicator.
• Compatible with motor circuits, transformers, and general-purpose circuits.

Product Highlights

Designed for reliable circuit protection, this fuse excels in various applications and provides essential safety features.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• Manufacturer: Mersen / Ferraz Shawmut

Technical Specifications

• Part Number: A6D100R

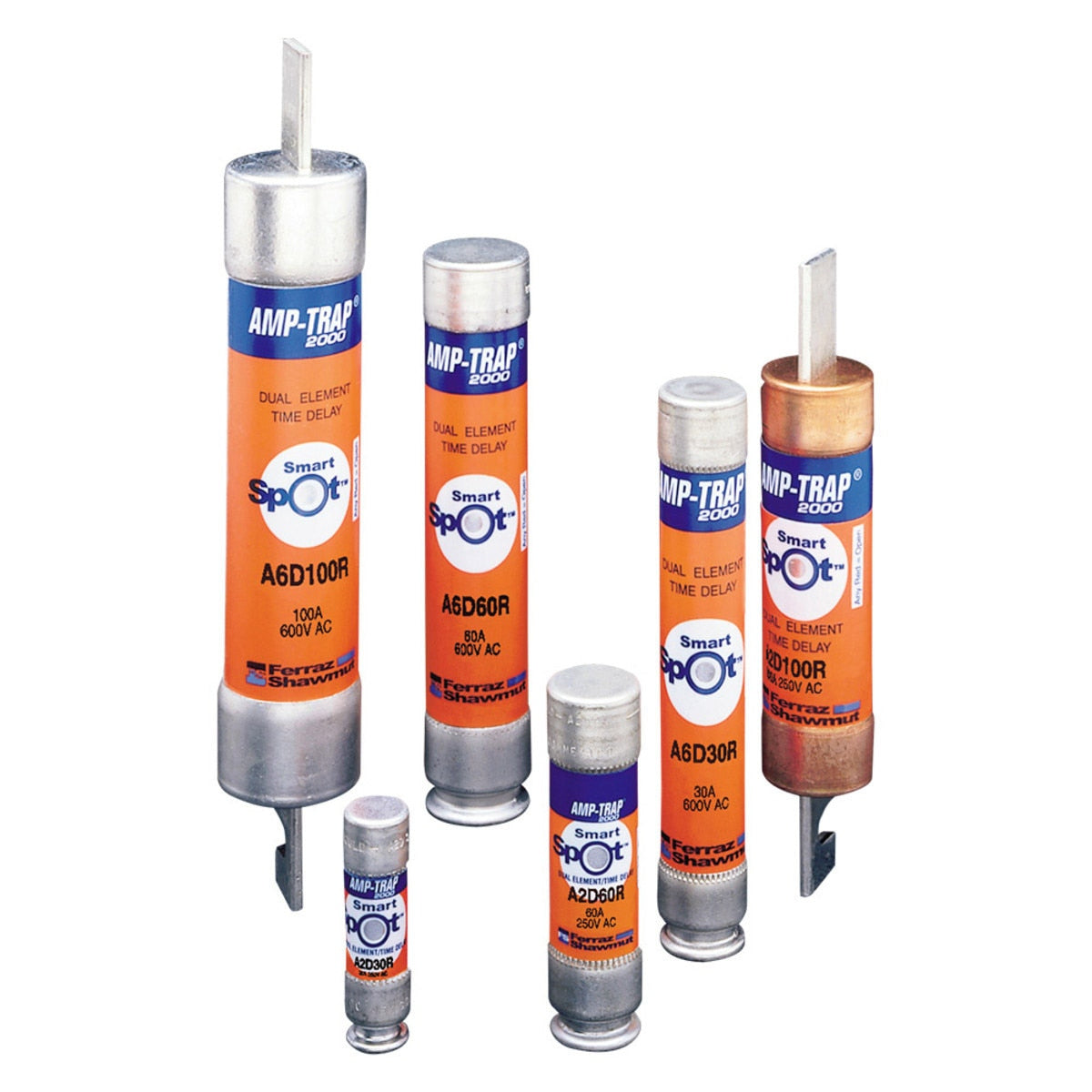

• Family: Amp-Trap 2000
• Amperage: 100 A
• Voltage: 600VAC/DC
• Interrupting Rating AC: 200kA
• Interrupting Rating DC: 100kA
• Visible Open Indicator: SmartSpot
• UL Standard: UL Listed to Standard 248-12
• CSA Standard: CSA Certified to Standard C22.2 No. 248.12
• Category: Fuses
• Type: A6D-R
