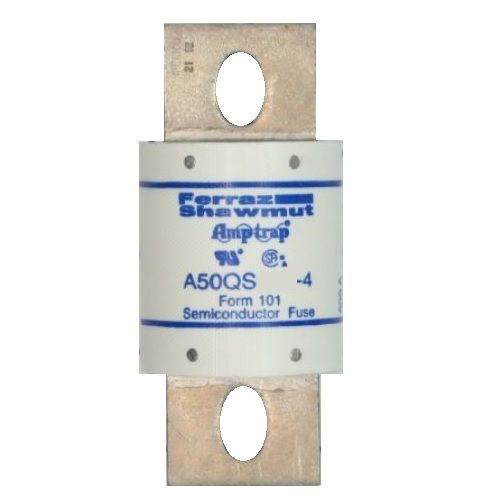

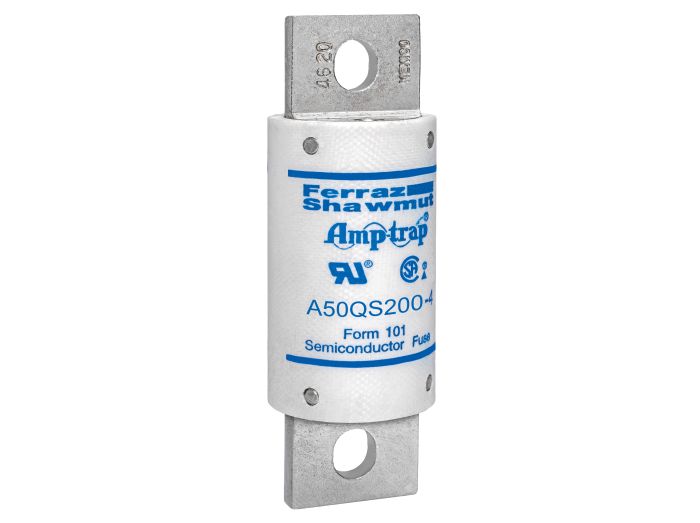

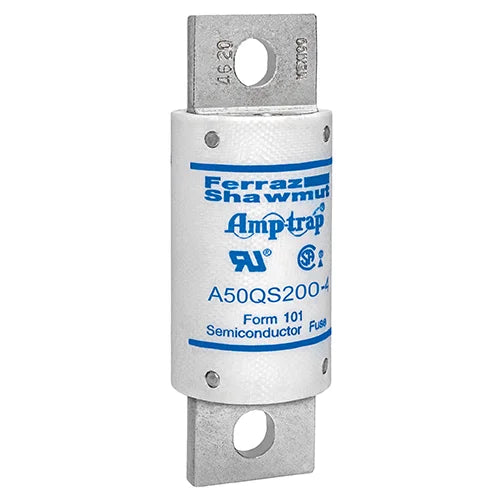

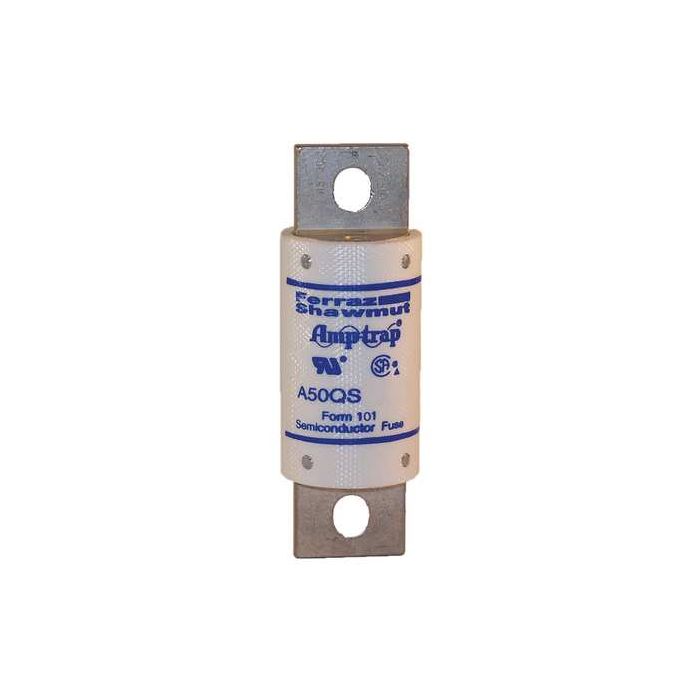

Ferraz Shawmut A50QS200-4 Semiconductor Fuse 200A

Product Description

The FERRAZ SHAWMUT A50QS200-4 is a semiconductor fuse with an amperage of 200A. These Amp-Trap fuses are designed to improve the performance of semiconductor fuses, offering enhanced protection for dynamic solid state equipment such as motor drives and inverters. It features a blade connection and bolted mounting.

• Lower I2t for better equipment protection
• Longer life under cyclic loading
• Lower watts loss

Product Highlights

This high-speed fuse provides superior cycling ability and is suitable for residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• Manufacturer Part Number: A50QS200-4

Technical Specifications

• Amperage: 200 Amp
• Voltage: 500 Volt
• Size: 31.5 x 92.2 mm
• Fuse Type: American Seminconductor Type
• Case: GMG
• Mounting: Bolted
• Sub Brand: Amp-Trap
• Brand Name: Mersen
• Connection: Blade
• Application: Protection of 500V or less motor drives; UPS; inverters; etc.
• Manufacturer: FERRAZ SHAWMUT
• Voltage Rating: 500 V
• Amperage Rating: 200 A
• Special Features: Lowest I2t for greatest protection of semiconductor circuits Low watts loss for
• AC Voltage Rating: 500 V
• DC Voltage Rating: 500 V
• Speed: High Speed
• Equivalent: Buss FWH Style
• Physical Size: 1.22" x 3.63"
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 87,000 AIC
• UL File: 60314
• AC UL guide no.: JFHR2
• DC Tested: UL standard 198L parameters (70-1200A)
• CSA Certified: LR12636
• Voltage Type: AC
• Frame Type: A50QS
• Series: A50QS
• Catalog Number: A50QS200-4
• Catalog / Class: Semiconductor
• Speed/Characteristic: High Speed
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.22 in
• Product Length: 3.63 in
• Current Rating: 200 A
