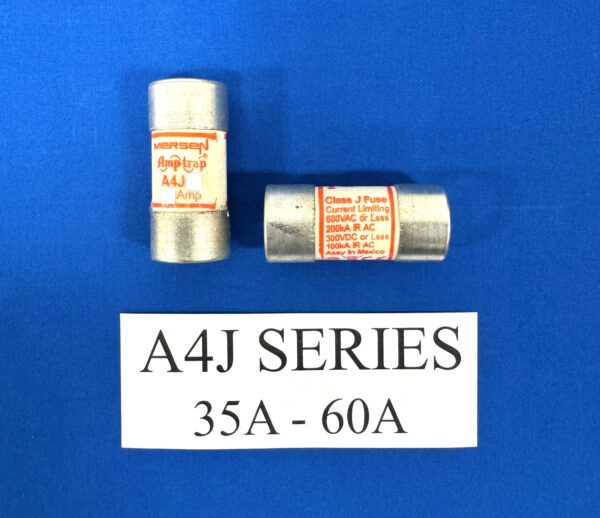

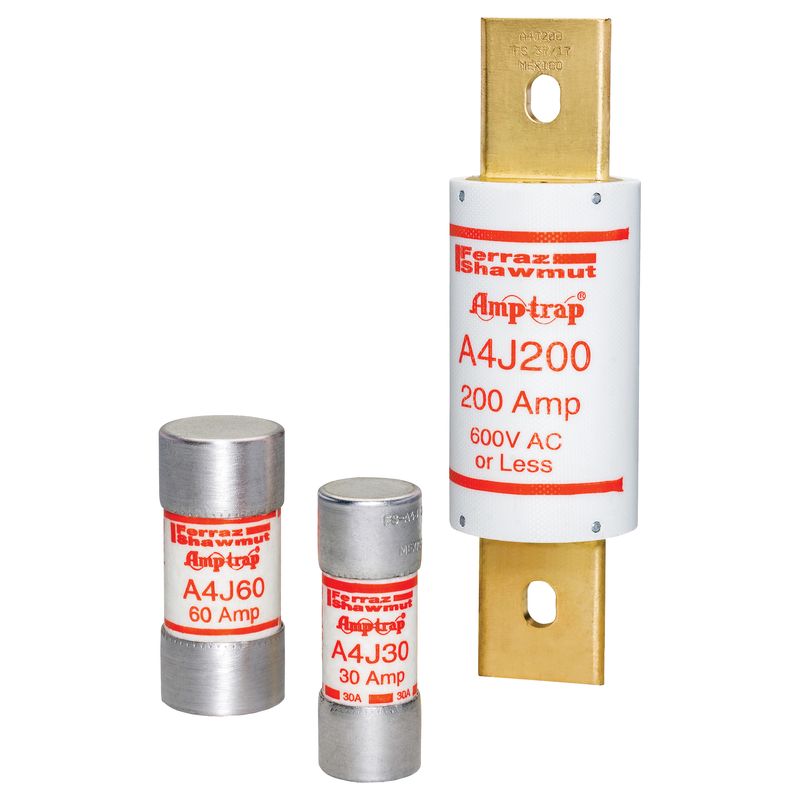

FERRAZ SHAWMUT A4J45 Fuse 45A Class J

Product Description

The FERRAZ SHAWMUT A4J45 is a reliable Class J, fast-acting fuse. This fuse offers current-limiting protection for various applications. The design ensures it cannot be replaced with fuses having lower voltage or interrupting ratings. It has specific dimensions and features a ferrule connection and a durable PolyTube body.

• Fast-acting Class J fuse
• Rated for both 600VAC and 300VDC
• Tin-plated copper ferrule connections

Product Highlights

This fuse is ideal for protecting electrical circuits. Use it in commercial or industrial settings where speed and efficiency are essential.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• MPN: A4J45

Technical Specifications

• Type: Fuse
• Fuse Class: Class J
• Amperage Rating: 45 A
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Voltage: 600
• AC/DC: AC/DC
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 1.06 inches
• Product Length: 2.38 inches
• Product Weight: 0.17 lb
• Body/Insulating Material: PolyTube
• Frequency (Hz): 50/60 Hz
