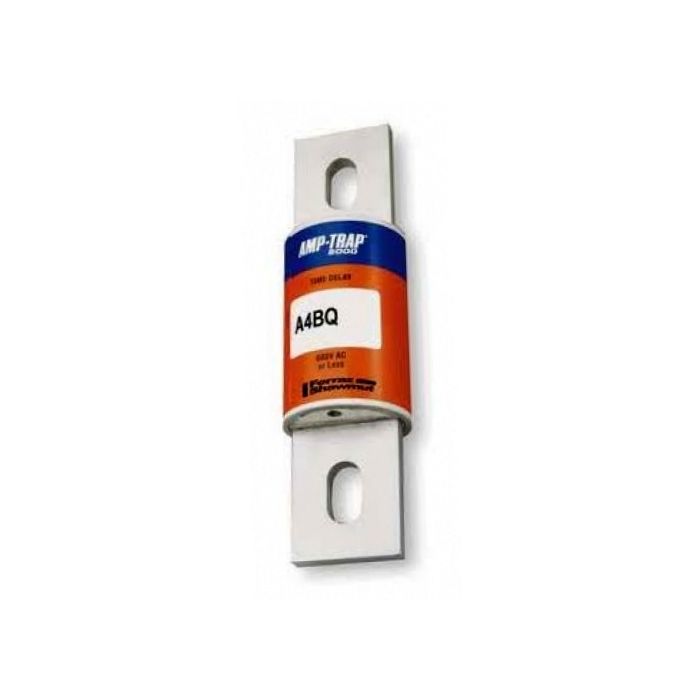

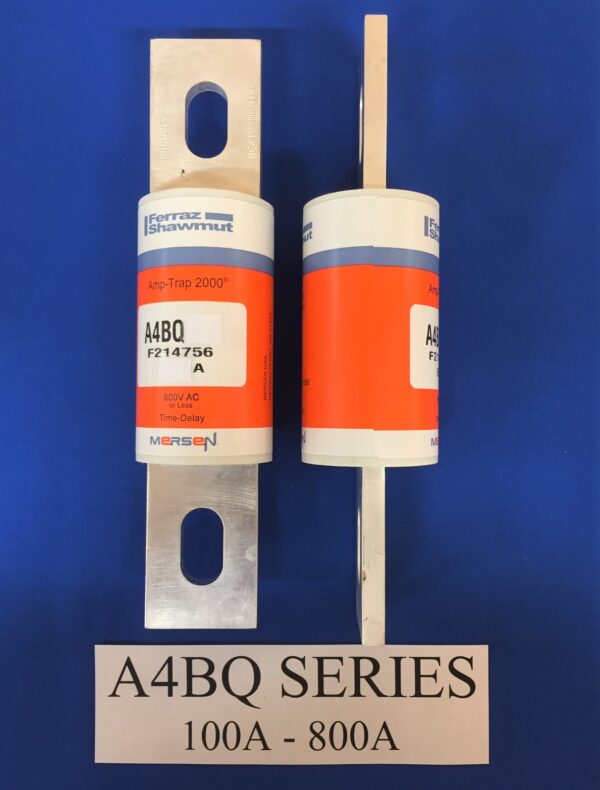

FERRAZ SHAWMUT A4BQ800 Fuse

Product Description

The FERRAZ SHAWMUT A4BQ800 is a Class L, Amp-Trap 2000 series fuse designed for safety in electrical systems. This fuse offers time-delay and current-limiting features that protect your electrical systems from short circuit damage. It is suitable for use with bolted pressure switches and service entrance equipment.

• Class L, time-delay fuse
• Current-limiting protection
• Compatible with bolted pressure switches

Product Highlights

FERRAZ SHAWMUT A4BQ800 is engineered for reliable performance in various applications, effectively managing inrush currents with its built-in time-delay.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• MPN: A4BQ800

Technical Specifications

• Series: Amp-Trap 2000
• Amperage Rating: 800 A
• Voltage: 600 V
• Voltage DC: 500 V
• Fuse Class: Class L
• Speed/Characteristic: Time Delay
• Interrupting Rating: 200 kA
• Mounting Type: Bolted
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 2 inches
• Product Length: 8.63 inches
• Weight: 4 lbs
• Frequency: 50/60 Hz
• ROHS Compliant: Yes
• Body/Insulating Material: GMG
