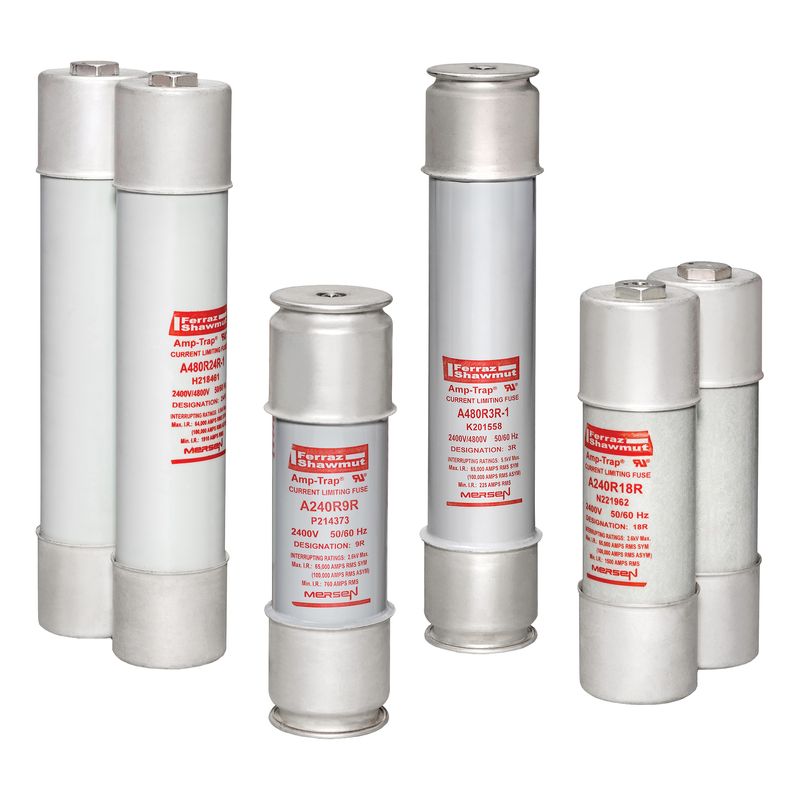

Ferraz Shawmut A240R3R R-Rated Medium Voltage Fuse

Product Description

The Ferraz Shawmut A240R3R is an R-Rated fuse that provides short circuit protection for medium voltage motors and motor controllers. This current-limiting fuse has a high interrupting rating, making it suitable for critical applications. When used as a back-up fuse, it is designed to work in conjunction with overload relays in combination motor starters. The fuse features ferrule terminals for clip mounting and includes a visual indicator for ease of use.

• Current-limiting design
• Visual indicator included
• Ideal for medium voltage motor protection

Product Highlights

The Ferraz Shawmut A240R3R ensures safe operation in medium voltage systems.

Product Information

Standard Information

• Manufacturer Part Number: A240R3R
• Rated Voltage AC UL: 2400 V

Technical Specifications

• Frequency: 50/60 Hz
• AC or DC: AC
• Speed/Characteristic: R-Rated
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 65 kA
• Design Details: 3R
• Indication System: Yes
• Indication System Type: Visual Indicator
