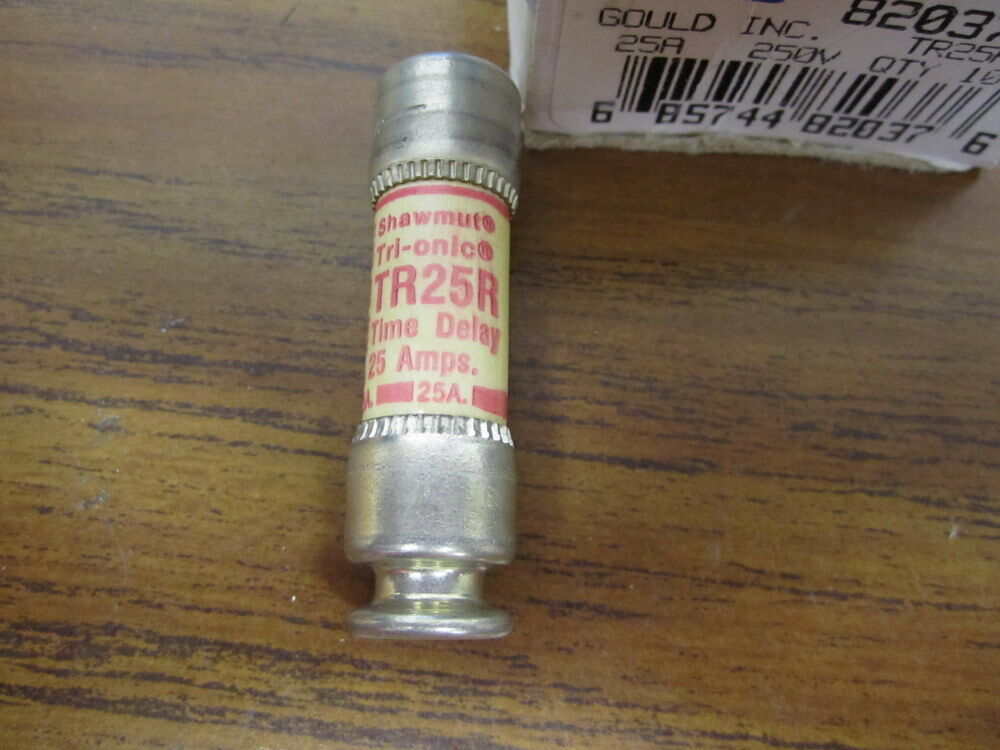

Ferraz Shawmut 82037 25A 250V Time Delay Fuse

Product Description

The Ferraz Shawmut 82037 is a 25 Amp, 250 Volt time-delay fuse suitable for various applications. It is ideal for AC power distribution, motor protection, and general-purpose use. This Class RK5 fuse offers reliable branch circuit protection for both inductive and non-inductive loads.

• 25 Amp, 250VAC/160VDC time-delay fuse.
• Class RK5 fuse for reliable circuit protection.
• Dual-element construction for handling inrush currents.

Product Highlights

This fuse is designed with time-delay features that effectively manage harmless starting and inrush currents associated with motors and transformers. It can replace multiple brands, including Bussmann, Littelfuse, and Cefco.

Product Information

Standard Information

• MPN: 82037
• Brand: Ferraz Shawmut

Technical Specifications

• Amperage: 25 A
• Voltage: 250 VAC, 160 VDC
• Type: Time-Delay
• Series: Class RK5
• Interrupt Rating AC: 200kA
• Interrupt Rating DC: 20kA

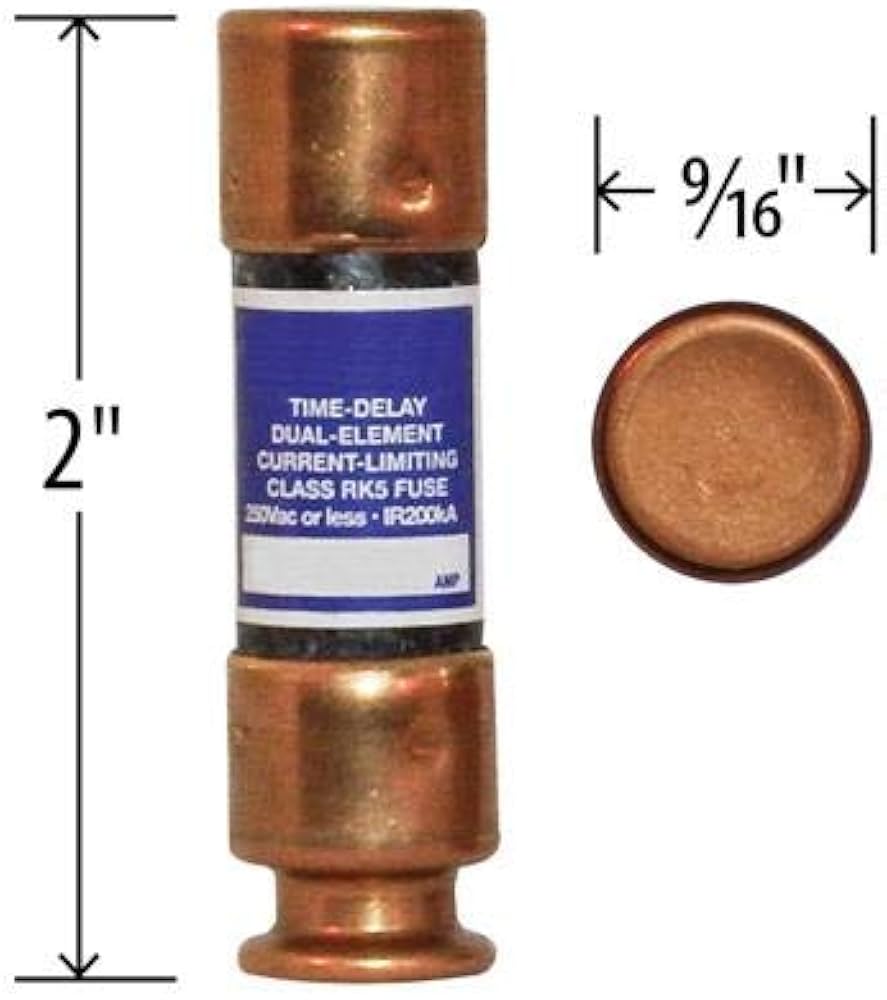

• Length: 2 inches
• Diameter: 0.5625 inches
• Element: Dual
